Reference Antennas

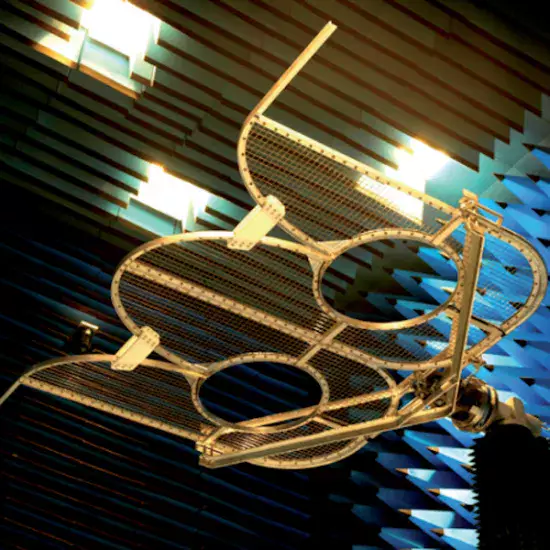

VHF Wideband Low-Profile Antenna

40 MHz - 400 MHz

Low profile reference antenna for measurements in VHF frequencies.

References:

  • WLPA40
VHF Wideband Low-Profile Antenna

TECHNICAL PERFORMANCE

  • Wide bandwidth
  • Linear polarization
  • Low loss and high efficiency
  • Low return loss / VSWR

DESIGN

  • Low profile
  • Aluminium structure
  • Lightweight and handles for easy handling
  • High stiffness

SURFACE TREATMENT

  • Hard anodic oxidation coating on the mounting flange
  • For indoor use

REPEATABILITY

  • Robust mechanical design
  • Optimized low mechanical deformation due to the dead load
  • Reliable cables and coaxial connectors

DELIVERED DOCUMENTS

  • Measured return loss data
