Single-probe Systems

MicroLab

50000 MHz - 110000 MHz

µ-Lab is suited for the collection of far-field and near-field electromagnetic data of chips and miniature antenna assemblies in the millimeter waveband. It is the ideal measurement system for testing M2M devices using WiGig technology. The extra-wide door on this compact anechoic chamber enables easy access and mounting of the DUT. µ-Lab is a portable turn-key system that can be moved to any preferred location. MVG’s 959 Spectrum software complements the µ-Lab for complete data acquisition and analysis.

Referenzen:

MicroLab

MicroLab

MicroLab

MicroLab

MEASUREMENT CAPACITIES

Gain
Directivity
Sidelobe levels - user-defined criteria
Null depth- search for user-defined null level (e.g, -3, -10, etc.)
Time domain response capacity
Dynamic density control - real time speed adjustments
Beam width - user-defined beamwidth analysis (1 dB, 3 dB, etc.)
Pass/fail criteria - user defined specification levels (e.g., minimum gain spec over angular region)
Capabilities up to 2 millimeter wave bands (V and W), others upon request

FREQUENCY BANDS

50 to 110 GHz
20 to 50 GHz optional
Other bands possible upon request

TECHNOLOGY

Near-field / Spherical
Far-field / Spherical

MAX. SIZE OF DUT

On centered support column: as large as a standard laptop
On offset column for chip measurements: 5 cm x 5 cm (chipset)

DYNAMIC RANGE

> 60 dB between 50 to 110 GHz

Ähnliche Produkte

Mini-Compact Range

Mini-Compact Range

4000 MHz - 110000 MHz

StarLab 50 GHz

StarLab 50 GHz

650 MHz - 50000 MHz

mm-Wave Chip Reference Antennas

mm-Wave Chip Reference Antennas

24250 MHz - 64000 MHz

Verwandte Ressourcen

TAC Boosts Research, Resources, and Recruitment for FIU

TAC Boosts Research, Resources, and Recruitment for FIU

Fallstudien

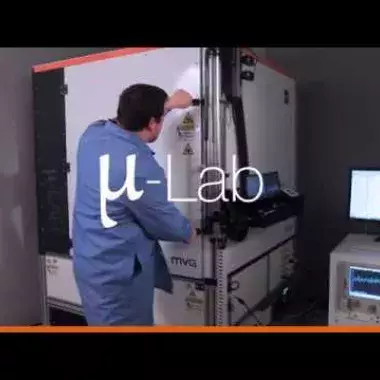

See MicroLab in action!
