Acquisition Control Hardware

High-Speed-Switch-Measurement-Controller

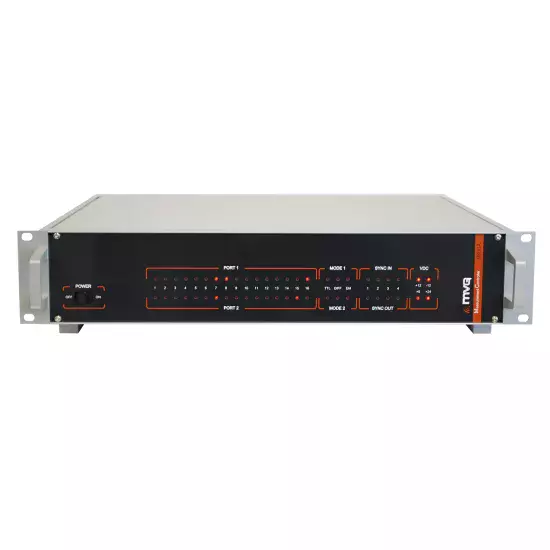

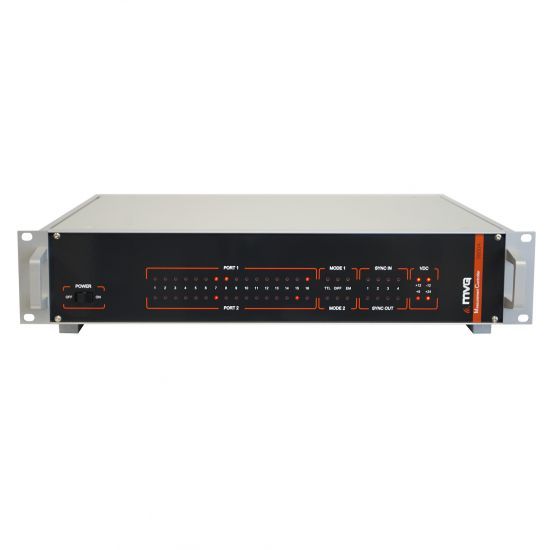

The OFR 9800 is designed for synchronization and sequencing of general purpose data acquisition, high speed switch control, run-time control, and triggering applications. It is a 2U rack-mount unit with a built-in DC power supply and provides 32-bits of I/O control (in the form of two 16-bit ports).

References:

OFR 9800

High-Speed-Switch-Measurement-Controller

KEY FEATURES

32 Bits of I/O Control
2 Independent Ports
Differential Output Mode Available
Multiple Device Synchronization Via 4 Independent Sync I/O Lines
Real-Time Stability Check
Array Calibration
TCP/IP Packet Transmission
Optional Software Development Kit (SDK) for Third-Party Applications

APPLICATIONS

Multi-Channel Antenna & RCS MeasurementT/R Module Testing
Polarization & Band Switching
Mode Switching (AUT Transmit or Receive Mode)

INDUSTRIES

Solutions for Academic & Research Institutes
Solutions for Aerospace & Defense
