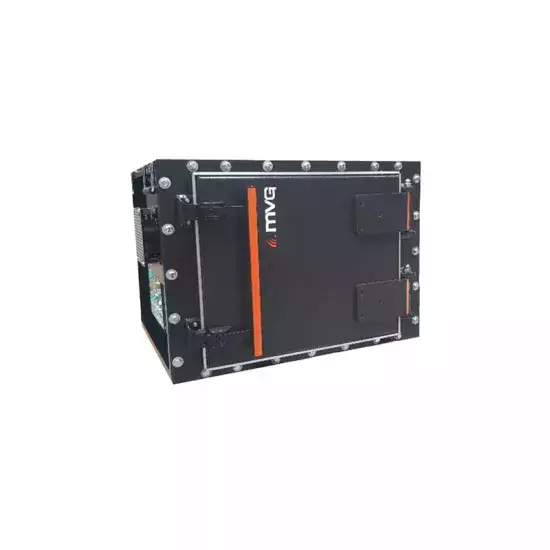

Shielded Test Cell

0 MHz - 40000 MHz

With an operating frequency starting at 10kHz, the Shielded Test Cells (STC) create an ideal environment for testing wireless devices for such technologies as GSM, UMTS, CDMA, Bluetooth, DECT, etc. Developed for the R&D, production and quality control environments where space is critical.

KEY FEATURES

  • Chamber dimension 0.5m x 0.5m x 0.5m or 1.0m x 1.0m x 1.0m
  • Constructed from 2mm thick steel tray system or bolted with TCS gasket or welded
  • Standard attenuvents for cooling on the DUT
  • Ferrite and Hybrid Lining from 30MHz - 18GHz
  • Very cost-effective solution
  • Flexible modular design enables easy size changing or upgrading
  • Convenient for remote testing to move around in the offices or test labs
  • Meets several ETSI test standards
  • Penetration and filtering can be adapted to the customer's requirements
  • Independently certified 100dB @ 18 GHz shielding performance (1SO 1702)

APPLICATIONS

  • STC creates an ideal environment for testing wireless devices for such technologies as
  • GSM
  • UMTS
  • CDMA
  • Bluetooth
  • DECT
  • W-LAN
  • Zigbee
  • RFID
  • Wimax
