Components

Receive Unit

500 MHz - 50000 MHz

The Receive (RX) Unit is a simplified version of the Transmit and Receive Unit. These units allow only down frequency conversion and thus represent a cost-effective solution for antenna measurement systems.
Receive Units offer the option to include a Low Noise Amplifier (LNA) to gain the received signals.

References:

  • OFR-RX00520-1 -
  • OFR-RX00520-2 -
  • OFR-RX00540-1 -
  • OFR-RX00540-2 -
  • OFR-RX00550-1 -
  • OFR-RX00550-2

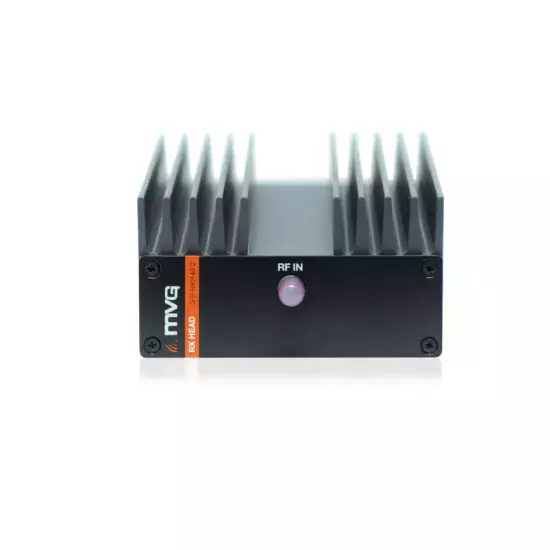

Receive Unit

KEY FEATURES

  • Simple and cost-effective RF front end for antenna measurement
  • Stable VSWR towards the AUT or probe/feed
  • Complimentary to Transmit and Receive RF unit from Probe/Feed and AUT sides
  • Supports receive mode only

FREQUENCY RANGE

  • 0.5 - 50 GHz
