Defect Detection

StarProd LTB

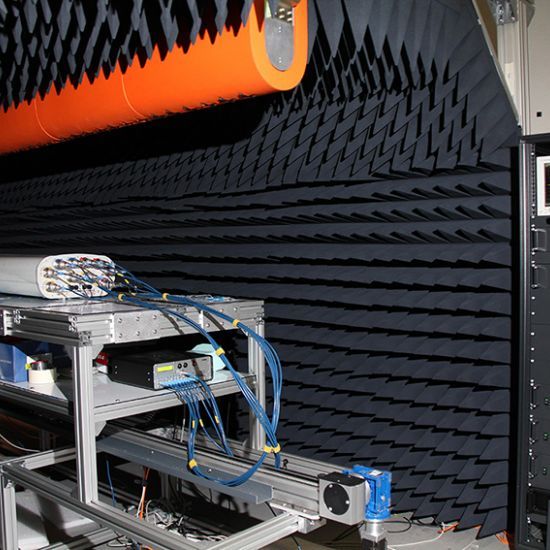

The StarProd LTB is a unique defect detection bench for linear array antennas such as BTS. Tests performed on this bench instantly identify defects such as flawed or absent soldering, swapped wiring or short circuits. Results provide information on the position and type of any existing error. Operators can then immediately step in to make corrections knowing precisely how and where they are needed. StarProd LTB also performs tilt computations which can reveal a misconfiguration, or a mechanical or RF component defect. The end result: improved production processes and product quality.

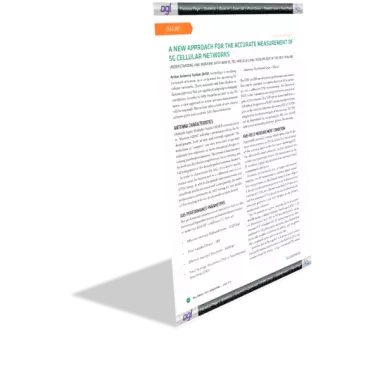

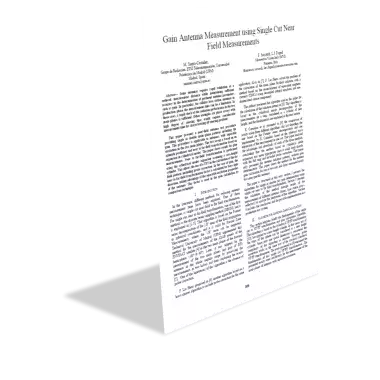

References:

StarProd LTB

KEY FEATURES

Locates potential defects
Gives the tilt value of each port
Provides test results in less than 2 minutes
Keeps misalignment and operator errors in check
Easy to use: no RF background required, user-friendly software High repeatability
Suitable for directive antennas such as BTS
Makes systematic testing possible for consistent quality control

GIVES THE STATUS OF EACH ELEMENT
