Single-probe Systems

MicroLab

50000 MHz - 110000 MHz

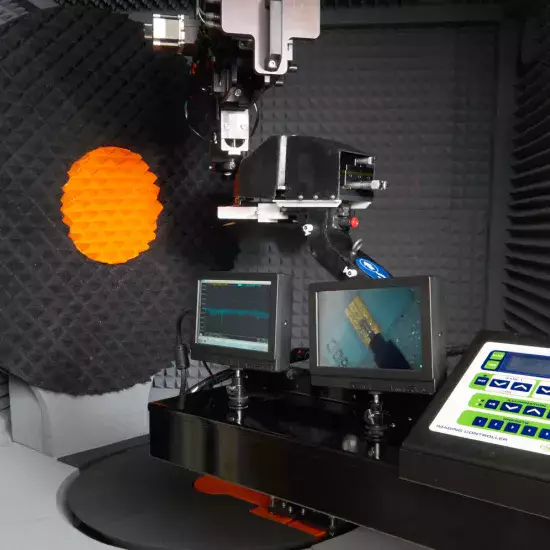

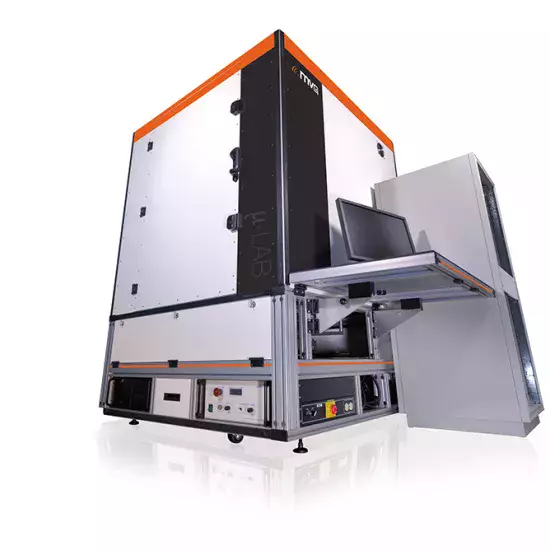

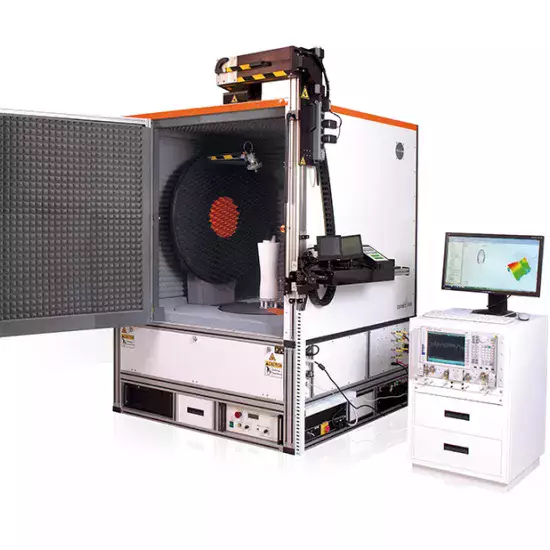

µ-Lab is suited for the collection of far-field and near-field electromagnetic data of chips and miniature antenna assemblies in the millimeter waveband. It is the ideal measurement system for testing M2M devices using WiGig technology. The extra-wide door on this compact anechoic chamber enables easy access and mounting of the DUT. µ-Lab is a portable turn-key system that can be moved to any preferred location. MVG’s 959 Spectrum software complements the µ-Lab for complete data acquisition and analysis.

References:

  • MicroLab
MicroLab
MicroLab
MicroLab
MicroLab
MicroLab
MicroLab

MEASUREMENT CAPACITIES

  • Gain
  • Directivity
  • Sidelobe levels - user-defined criteria
  • Null depth- search for user-defined null level (e.g, -3, -10, etc.)
  • Time domain response capacity
  • Dynamic density control - real time speed adjustments
  • Beam width - user-defined beamwidth analysis (1 dB, 3 dB, etc.)
  • Pass/fail criteria - user defined specification levels (e.g., minimum gain spec over angular region)
  • Capabilities up to 2 millimeter wave bands (V and W), others upon request

FREQUENCY BANDS

  • 50 to 110 GHz
  • 20 to 50 GHz optional
  • Other bands possible upon request

TECHNOLOGY

  • Near-field / Spherical
  • Far-field / Spherical

MAX. SIZE OF DUT

  • On centered support column: as large as a standard laptop
  • On offset column for chip measurements: 5 cm x 5 cm (chipset)

DYNAMIC RANGE

  • > 60 dB between 50 to 110 GHz
