Telecommunication Antennas

Planar Antennas for Integrated Applications

24025 MHz - 24225 MHz

Planar Antennas for Integrated Applications are a solution for general transmitting and receiving applications at 24 GHz, radar and radio link point-to-point.

References:

  • PA2400-A -
  • PA2400-B -
  • PA2400-C -
  • PA2400CP-A

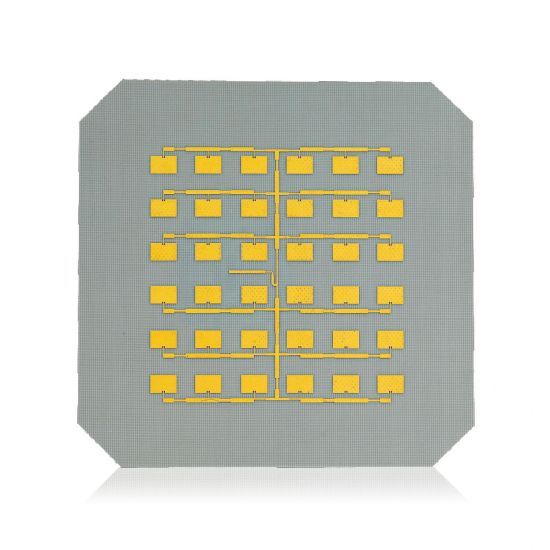

Planar Antennas for Integrated Applications

TECHNICAL PERFORMANCE

  • High gain
  • Power handling up to 20 W
  • Linear or circular polarization

DESIGN

  • Optimized WR42 microstrip transition allows the connection of electronic parts with a standard flange
  • Can be easily integrated in existing systems

DELIVERED DOCUMENTS

  • Conformity certificate (measured VSWR)

RELATED STANDARD

  • IEC 60068

EQUIPMENT

  • Ground plane
  • Mounting flange
