EMC Test Chambers

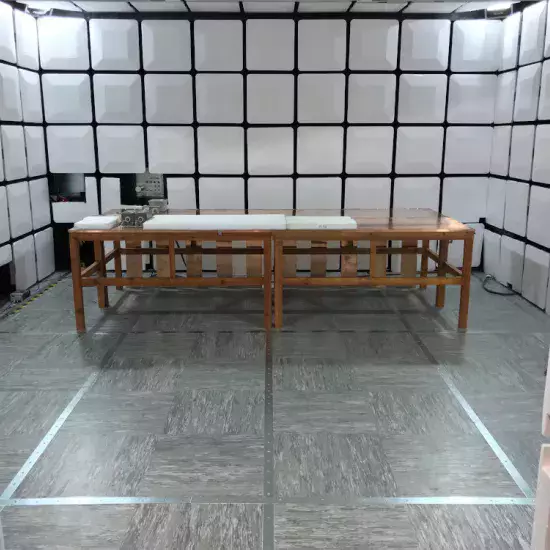

MIL-STD Chamber

80 MHz - 40000 MHz

A high performance RF-shielded EMC chamber specifically designed for emc measurements in accordance with MIL-STD-461E/F and RTCA DO160 requirements.

References:

  • MIL-STD
MIL-STD Chamber

APPLICATIONS

  • EMC Compliance testing Conducted emissions
  • EMC Compliance testing Conducted immunity
  • EMC Compliance testing Radiated emissions
  • EMC Compliance testing Radiated immunity testing

KEY FEATURES

  • EMC Chamber Dimensions (Internal shield)  5.5 m x 5.5 m x 3.5 m
    • Typical 2.5m wide test bench
    • Note Dimensions may vary, dependent on the dimensions of the equipment under test for e.g. a test bench or aircraft
  • EMC Compliance for Emission/Immunity performance
  • Absorbers compliant with MIL STD requirement -6dB 80-250MHz and -10dB > 250MHz
  • Performance range 80 MHz - 40000 MHz
  • Independently certified 100 dB @ 18 GHz shielding performance (EN50147-1)
  • EMC absorbers ULTRA UHC series polypropylene based Broadband electromagnetic
  • Optional Commercial testing with HyPyr-Loss™ Ferrite and Hybrid Lining available
  • Optional High power absorbers available for radar and other applications
  • Optimized computer modeling to enable cost effective EMC absorbers layouts
  • This EMC Chamber is a Bespoke and modular design enabling unlimited performance options and facilitating upgrades or relocations
  • This EMC Chamber is available as part of a complete turnkey package for EMC measurements
