Linear Positioners

Linear Floor Slides: Tapered Chamber Transmit

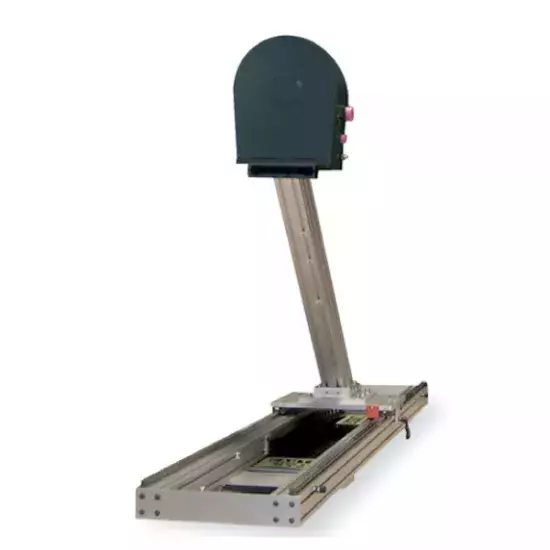

MVG AL-4710-1TC floor slide is tailored for linear adjustment of the transmit antenna stage in tapered chamber applications. This model is compatible with AL-560-1P and AL-760-1P series polarization positioners and can support an additional load of up to 100 lbs (45 kg) produced by the transmit antenna assembly.

References:

AL- 4610-X -
AL-4620-1-X -
AL-4710-1-X -
AL-4711-1-X

Linear Floor Slides: Tapered Chamber Transmit

APPLICATIONS

Linear Motion of Antenna Positioner Assemblies
General Purpose Linear Test and Measurement Systems

KEY FEATURES

Manual & Motorized Models
Vertical Loads Up to 1,500 lbs (680 kg)
Precision Linear Bearings
Rigid, Durable Mechanical Construction
Low Deflection
Manual: Includes Hand-brake
Motorized: Includes DC Motor, Gear Reduction, Synchro/Encode Assembly & Limit Switch Assembly
Custom Lengths Available
