Model Towers

Light Duty Model Towers

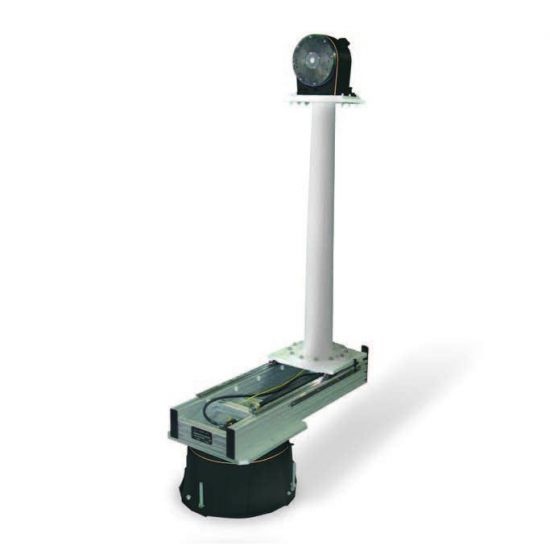

AL-38000 model towers are suited for light duty applications with an operating load of up to 150 lbs (68 kg). This series is available with either a manual or motorized linear offset slide. Manual slides can be hand-pushed or hand-wheeled. The mast (vertical or inclined) is available in fiberglass or aluminum construction.

References:

  • AL-38100 -
  • AL-38200
Light Duty Model Towers

APPLICATIONS

  • General Purpose Positioning Subsystems
  • Far-Field & Near-Field Antenna Measurements
  • Indoor Use

KEY FEATURES

  • Linear Bearings
  • Scale (Offset Indication)
  • Mechanical Stops
  • Manual AUT Adjustment over Lower AZ Center of Rotation
  • Compatible with Standard Antenna Positioners (Support Wiring Required)
