Rotary Positioners

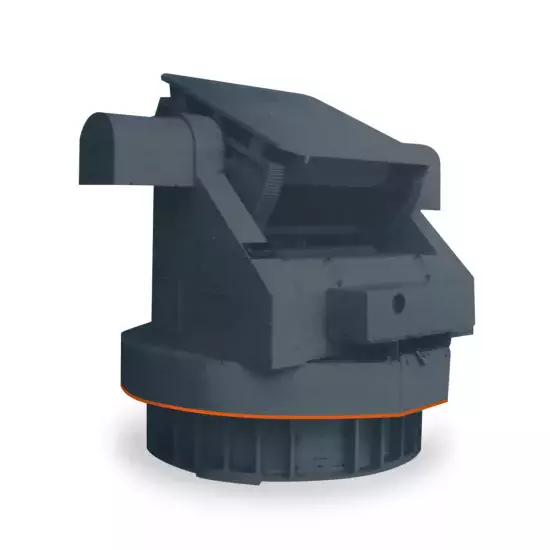

EL/AZ Positioners: Heavy Duty
These MVG-Orbit/FR Legacy Series EL/AZ Positioners provide accurate, balanced rotation, and controllable velocity of 2 axes, for the positioning of very large devices in test configurations.
Their rugged yet straight-forward construction ensures maximum reliability and trouble-free operation, yielding the best size and weight/performance ratio.
Typically, the unit includes the body, precise slew bearings, a DC motor, gear reducer, encoder/synchro, and limit switch assembly. The turntable surface is designed with a threaded mounting hole pattern for ease of use. A Safe/Operate switch is included to ensure safety.
References:
- AL-4216-1 -
- AL-4206-1 -
- AL-4207-1 -
- AL-4217-1 -
- AL-4209-1 -
- AL-4210-1 -
- AL-4211-1
