Performance Series - AZ/EL/AZ Positioners: Heavy Duty

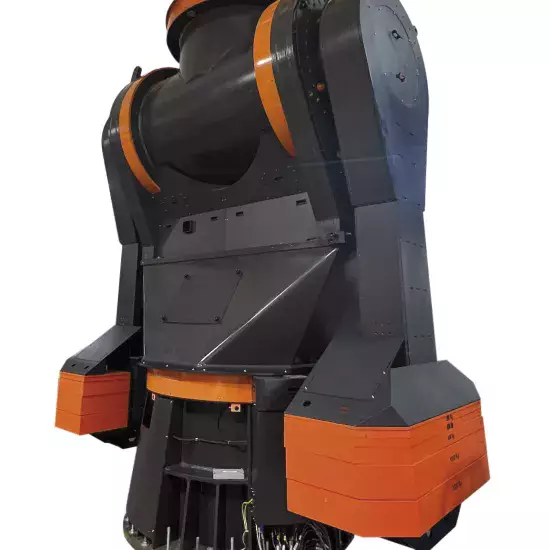

MVG Performance Series heavy duty AZ/EL/AZ positioners represent the latest generation of multi-axis rotary positioning subsystems with turntable diameters up to 70.9 in (1,800 mm). They offer enhanced capabilities and improved performance relative to size and incorporate new engineering advances.

References:

AL-4586-1 -
AL-4590 -
AL-4587-1 -
AL-4588-1 -
AL-4589-1

Performance Series - AZ/EL/AZ Positioners: Heavy Duty

APPLICATIONS

General Purpose Positioning Subsystems
Far-Field & Near-Field Antenna Measurements
Indoor & Outdoor Use
Aircraft Measurements

KEY FEATURES

Vertical Loads Ranging from 18,000 to 41,195 lbs (8,165 to 20,500 kg)
Turntable Diameter Ranging from 30.0 to 70.9 in (762 to 1,800 mm)
Optimum Performance Relative to Size
Excellent Angular Position Accuracy
Low Backlash Design
Precision Bearings
Closed Loop Servo Control
Industry-Standard Wiring
Tachometers for Optimum Speed Regulation & Control
Wide Operating Temperature Range: - 4° F to 140° F (- 20° C to 60° C)
Fully Enclosed Design of Drive Gear Train & Data Take-Off
Wide Variety of Available Options
