Rotary Positioners

Polarization Positioners: Light Duty

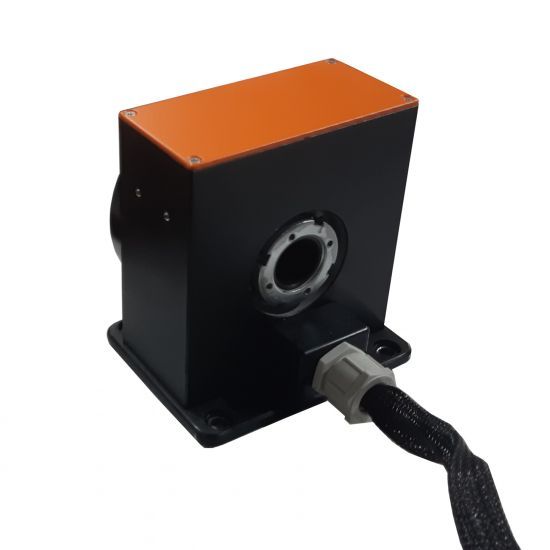

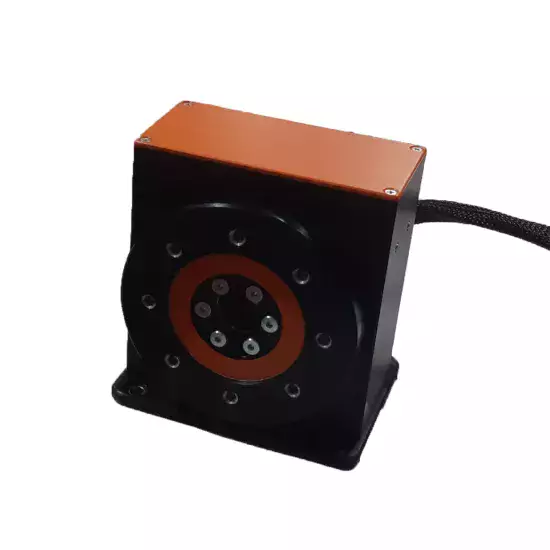

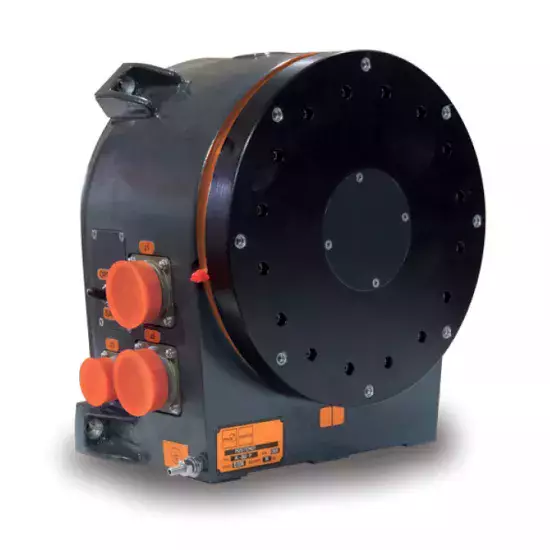

MVG light duty polarization positioners provide accurate rotation, velocity, and direction and offer turntable diameters up to 12.6 in (320 mm) . Their rugged yet simple construction ensures maximum reliability and trouble-free operations.

References:

AL-061-1P -
AL-161-1P -
AL-360-1P -
AL-360-1P15 -
AL-360-1P30 -
AL-360-1P60 -
AL-461-1P -
AL- 560-1P -
AL- 560-1P15 -
AL- 560-1P30 -
AL-560-1P60 -
AL-760-1P -
AL-760-1P15 -
AL-760-1P30 -
AL-760-1P60 -
AL-760-1P-S

APPLICATIONS

General purpose positioning subsystems
Far-field & near-field antenna measurements
Indoor & outdoor use

KEY FEATURES

Broad Selection – 14 Models
Operating Loads Ranging from
10 to 2,000 lbs (4.5 to 910 kg)
Turntable Diameters Ranging from
2.6 to 12.6 in (66 to 320 mm)
Excellent Angular Position Accuracy
Low Backlash Design
Precision Bearing
Closed Loop Servo Control
Industry-Standard Wiring
Tachometers for Optimum Speed Regulation & Control
Wide Operating Temperature Range: - 4° F to 140° F (- 20°C to 60° C)
Fully Enclosed Design of Drive Gear Train & Data Take-Off
Wide Variety of Available Options

INDUSTRIES

Solutions for Academic & Research Institutes
Solutions for Aerospace & Defense
