Specialty Absorbers

High Power Absorbers

80 MHz - 50000 MHz

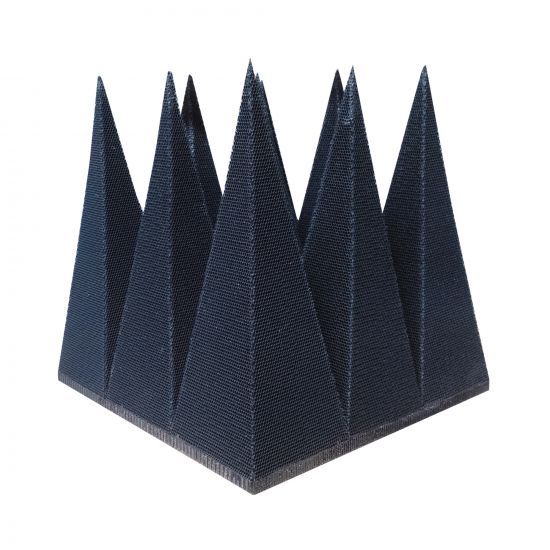

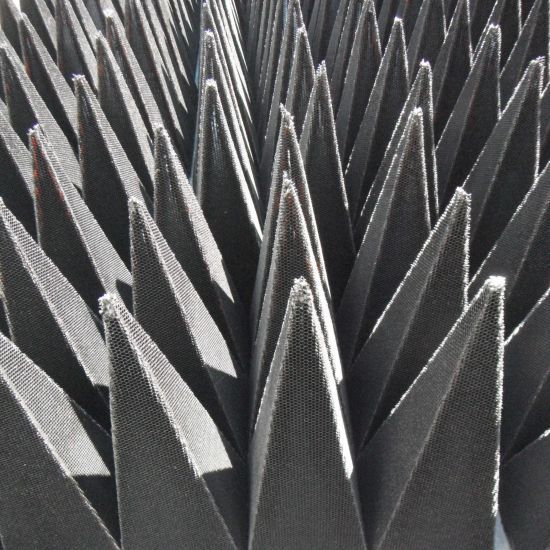

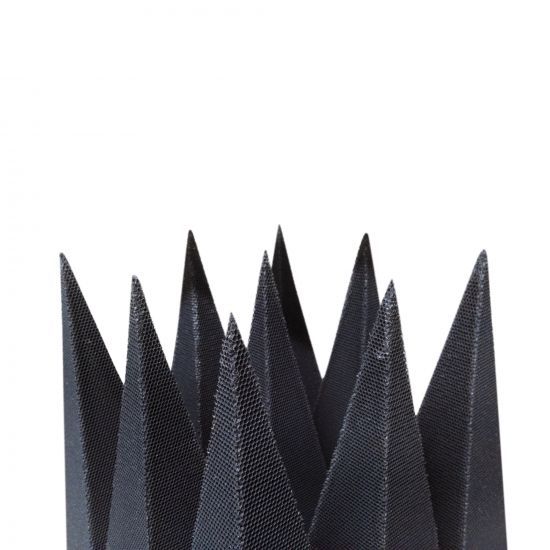

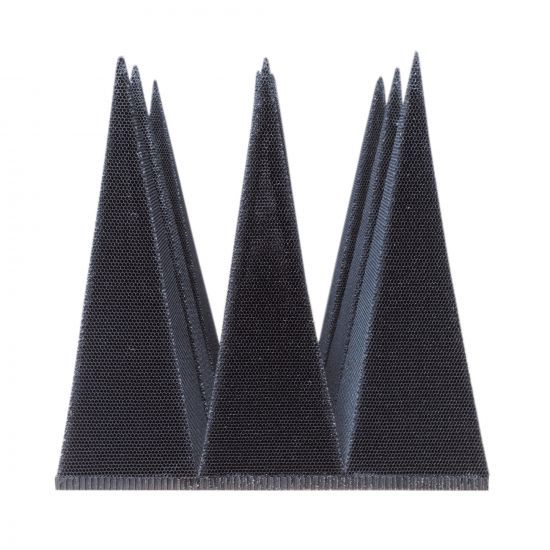

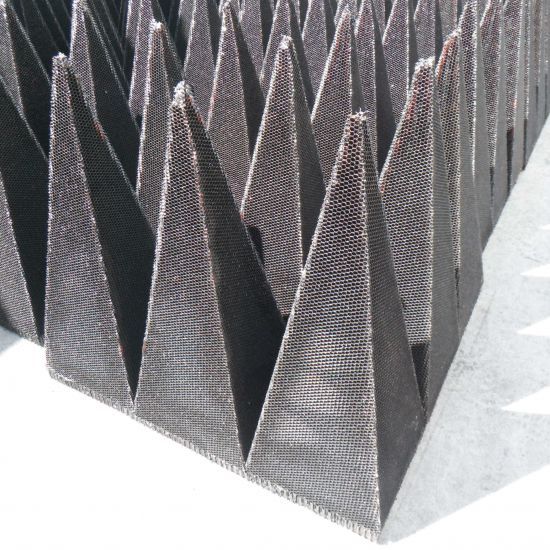

These high power handling absorbers are designed for high energy areas of chambers and equipment. The hollow, pyramidal honeycomb structure allows for quick heat dissipation. Increased power handling is achievable with forced air cooling. Chambers can be partially or fully lined depending on needs.

Referencias:

  • AEP-18-HPX -
  • AEP-24-HPX -
  • AEP-36-HPX
High Power Absorbers
High Power Absorbers
High Power Absorbers
High Power Absorbers
High Power Absorbers
High Power Absorbers
High Power Absorbers
High Power Absorbers
High Power Absorbers
High Power Absorbers

KEY FEATURES

  • Honeycomb material allowing free circulation of air
  • High heat dissipation through natural convection or forced air ventilation
  • Handles 15 KW/m²; higher power handling capabilities with forced air
  • Weight: 12 Lbs. +/- 10% Humidity Factor
  • Withstands temperatures up to 176° C ( 350° F)
  • High fire retardancy

APPLICATIONS

  • All chamber types: aerospace & defense, telecom, automotive, academic & research institutes

SHAPE

  • Pyramidal

OPERATING CONDITIONS

  • Temperature: up to 176°C (350° F)
  • Relative humidity: 55% RH +/-15%

STANDARD BASE SIZE

  • 2’x2’ (609 mm x 609 mm)

HEIGHT

  • 18 in, 24 in, 36 in
  • Customizable sizes available upon request
