Antennas for High Power Applications

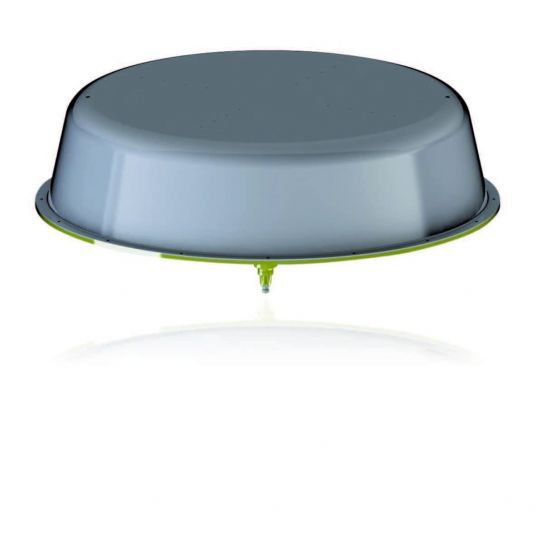

Wideband Transmit Airborne Antenna
100 MHz - 4000 MHz
Wideband Transmit Airborne Antenna is a solution for air-to-ground high power emission applications.
Referencias:
- SATX100
TECHNICAL PERFORMANCE
- Hemispherical radiation pattern for full ground coverage
- Circular polarization
- Wideband, low dispersion
DESIGN
- Compact, low profile spiral antenna over metamaterial ground plane and high temperature ferrite loading
- High power tapered coaxial balun
- Low weight, robust honeycomb radome
- Compliant to the airborne environment
SURFACE TREATMENT
- Surtec 650 according to MIL-C 5541E class 3
- Polyurethane paint (Blue grey RAL 7031)
REPEATABILITY
- Stiff and robust mechanical design
- Precision machined
- High reliability coaxial connector
DELIVERED DOCUMENTS
- Typical performance data (TYMEDA™)
- Measured return loss data
EQUIPMENT
- Mounting flange
- Low drag protective radome
