Occupational RF Safety

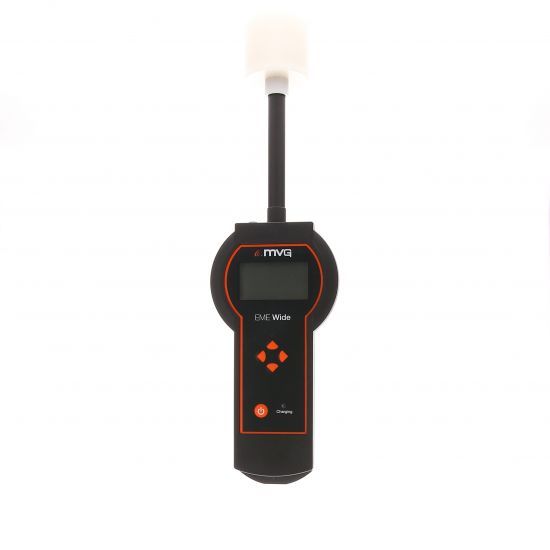

EME Wide

0.1 MHz - 6500 MHz

The EME Wide is a wideband field meter to monitor and record EMF Exposure. It is equipped with a tri-axial probe which guarantees measurement isotropy. Each device comes with a calibration report. The performance of this sensor has been optimized to ensure maximum isotropy.

Referencias:

EME Wide

MEASUREMENTS AND RESULTS

Isotropic or single axis (X, Y, Z) instantaneous field value
Maximum, RMS or Time/Spatial average of isotropic field value
Selectable unit (V/m, A/m, W/m²)
Alarm function (buzzer) with programmable field threshold
Measurements store in non-volatile memory (up to 20000 points).

EQUIPMENT INTERFACES

Easy use from the 5 keys membrane keypad
7 cm (2.8”) LCD display with led backlight
Optical link for communication with PC and remote control
Other information: date & time, temperature, battery charge status

BATTERY AND CHARGE

AA rechargeable NiMH battery
External wall charger with set of plugs
Automatic shutdown for very low battery or during recharge

USER PROFILE

Workers near antennas, including installers, maintenance workers, broadcasters, and cellular carrier employees: for the control of the compliance of the exposure level with the standards and safety perimeter definition.
Certification laboratory, regulatory body: for control and monitoring of the exposure in public or private locations and site certification.

MEASUREMENT CAPABILITIES

Continuous EM field level measurements

FREQUENCY BANDS

100 KHz to 6.5 GHz
