Reference Antennas

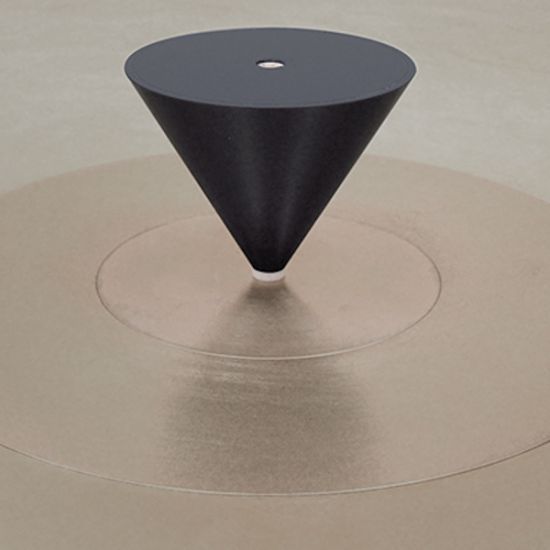

Monocones
70 MHz - 18000 MHz

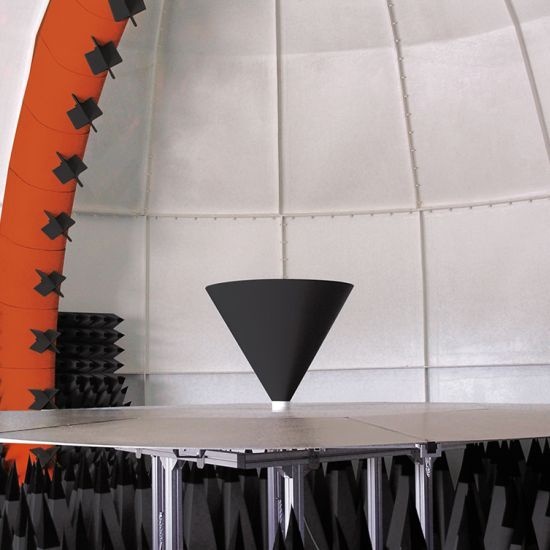

Monocones are a solution for wideband gain reference and particularly suitable for automotive test ranges.
Références:
- SMC70 -
- SMC220 -
- SMC700 -
- SMC2200 -
- SMC6000 -
- GP40 -
- GP50 -
- GP60 -
- GP100 -
- GP400
TECHNICAL PERFORMANCE
- Low loss and high efficiency
- Azimuth pattern symmetry
- Wide bandwidth
DESIGN
- Precision circular flange to mate with MVG ground planes
- Axially symmetrical design
SURFACE TREATMENT
- Surtec 650 according to MIL-C 5541E class 3
- Polyurethane paint
REPEATABILITY
- Stiff and robust mechanical design
- Minimum use of dielectric material
- Precision machined
- High-reliability connector
DELIVERED DOCUMENTS
- Typical performance data (TYMEDA™)
- Measured return loss data
EQUIPMENT
- High precision circular ground plane
