EMC Test Chambers

EMC-MC Mini Compact Chamber

26 MHz - 40000 MHz

Very useful where space is restricted, the EMC chamber EMC-MC will settle into almost any office space. Its small overall size results from the use of our modular SmartShield chamber lined with our AEPH HyPyr-LossTM absorber technology requiring less volumetric space than in a traditional chamber. This mini compact EMC chamber is applicable in EMC pre compliance and general Research & Development RF testing.

Références:

  • EMC-MC
EMC-MC Mini Compact Chamber

APPLICATIONS

  • EMC pre-compliance emissions and immunity for all electrical & electronic products

KEY FEATURES

  • EMC Chamber Dimensions (Internal shield)  6 m x 3 m x 2.4 m
  • EMC Pre-Compliance for Emission performance
    • CISPR 16-1-4/ANSI C63.4
    • NSA 30 MHz -1 GHz +/-4 dB or better @3m 80% of frequency range
    • Test Volume 1.0x1.0m (DxH)
  • EMC Pre-Compliance for Immunity performance
    • IEC 61000-4-3
    • 80MHz -18GHz UFA 1.0x1.0m @3m ) 0 +6dB
  • Independently certified 100 dB @ 18 GHz shielding performance (EN50147-1)

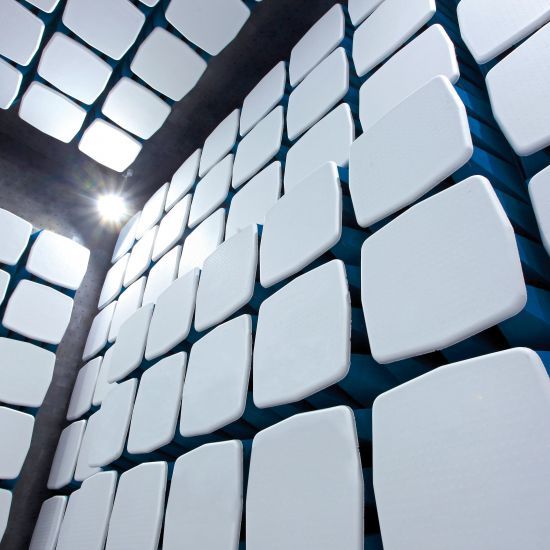

  • EMC absorbers HyPyr-LossTM Ferrite and Hybrid absorbers for 26 MHz - 40 GHz measurements
  • Optimized computer modeling to enable cost effective EMC absorbers layouts
  • This EMC Chamber is a Bespoke and modular design enabling unlimited performance options and facilitating upgrades or relocations
  • This EMC Chamber is available as part of a complete turnkey package for EMC measurements
