Systèmes multi-sonde

StarLab

650 MHz - 18000 MHz

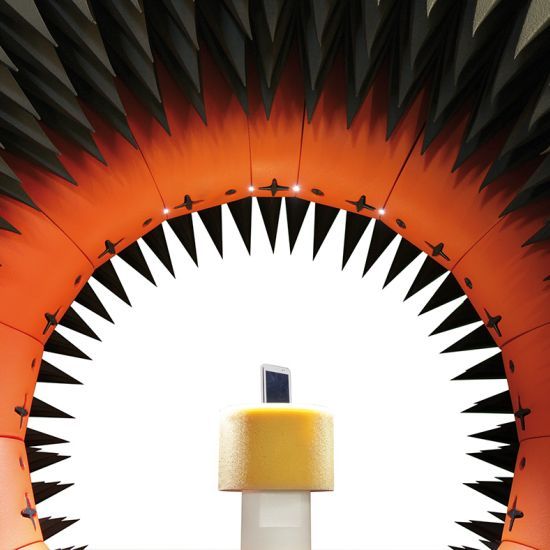

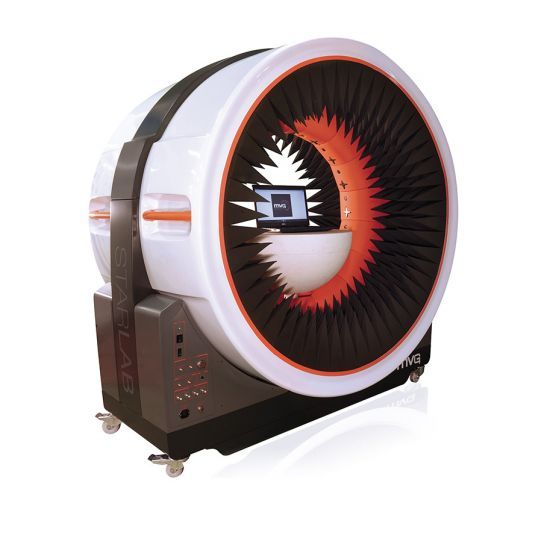

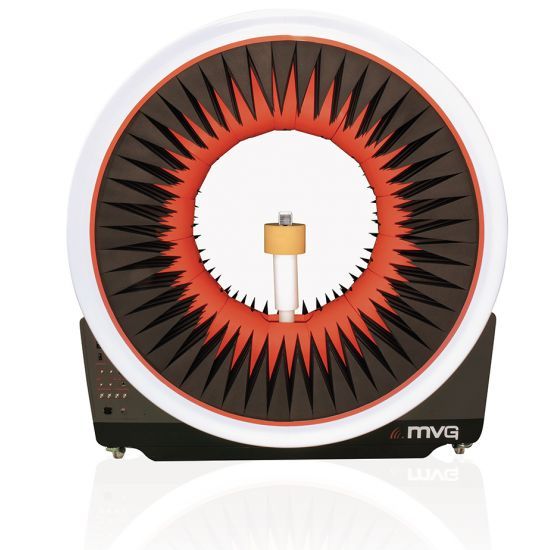

StarLab is the ultimate tool for antenna pattern measurements in laboratories and production environments where space is limited, cost is critical, and the flexibility of a portable system is required.

Références:

StarLab 6 GHz -
StarLab 10 GHz -
StarLab 18 GHz

MEASUREMENT CAPABILITIES

Gain
Directivity
Beamwidth
Cross polar discrimination
Sidelobe levels
3D radiation pattern
Radiation pattern in any polarization (linear or circular)
Antenna efficiency
TRP, TIS, EIRP and EIS

MAX. SIZE OF DUT

45 cm for spherical set-up
2.7 m x 45 cm for cylindrical set-up
Specific lengths available upon request

TECHNOLOGY

Near-field / Spherical
Near-field / Cylindrical

FREQUENCY RANGE

StarLab 6 GHz: 650 MHz to 6 GHz
StarLab 18 GHz: 650 MHz to 18 GHz

MAX. WEIGHT OF DUT

10 kg with styrofoam mast
15 kg with heavy DUT mast

TYPICAL DYNAMIC RANGE

650 MHz - 6 GHz: 70 dB
6 GHz - 18 GHz: 60 dB

OVERSAMPLING

Arch rotation
