TScan | Near-Field Planar Scanner

100 MHz - 110000 MHz

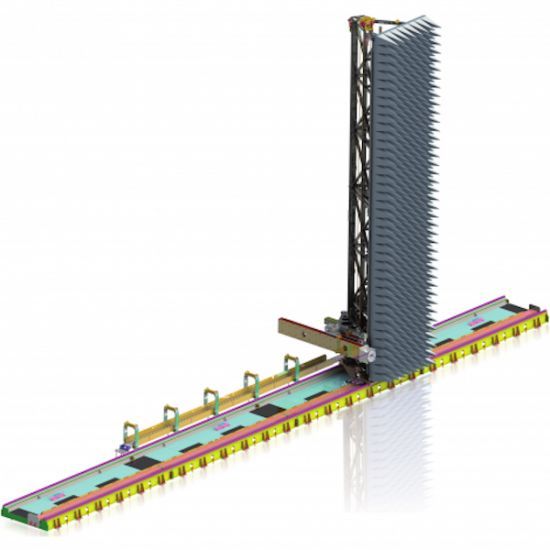

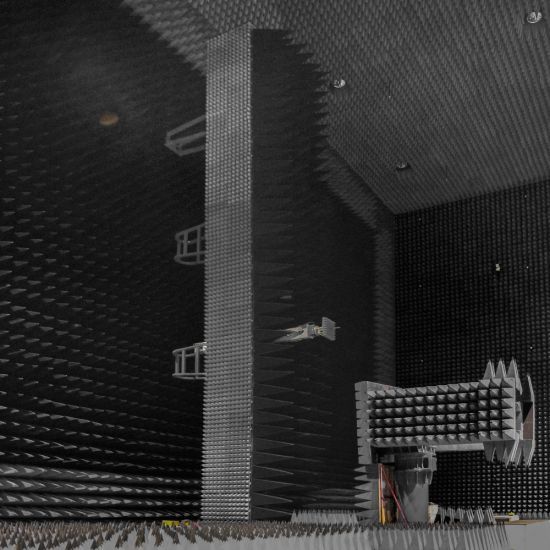

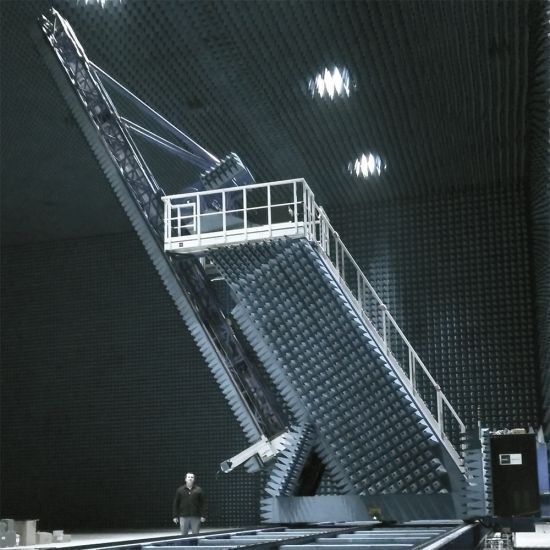

TScan is a fast and ultra-accurate near-ﬁeld planar scanner with the latest motor drive and encoder technologies. High acceleration of the linear motors for stepped and continuous mode operation optimizes the performance and cost of the scanner. Excellent manufacturing precision combined with direct readout high resolution linear encoders and careful alignment ensure unrivaled mechanical positioning accuracy and planarity. X-axis travel up to 50 m, Y-axis travel up to 26 m.

Références:

AL-4951 -
AL-49510 -
AL-49520 -
AL-49530 -
AL-49540

MEASUREMENT CAPABILITIES

Gain
Beamwidth
Sidelobe levels
Radiation pattern in any polarizations- (linear)
Multi beam antenna measurement and calibration
Directivity
Cross-polar discrimination
3D radiation (limited coverage)
Antenna efficiency
Beam pointing properties

MAX WEIGHT OF DUT

DUT is stationary, therefore the maximum weight of the DUT is limited by the foundation, antenna mount including any DUT alignment features, and building infrastructure.

TECHNOLOGY

Near-field/Planar
Near-field/Spherical (optional)
Near-field/Cylindrical

TYPICAL DYNAMIC RANGE

80 dB, depending on the frequency and antenna gain

SOFTWARE

MiDAS with NF/FF planar transform
959 Spectrum (North America only)
MV-Echo
Advanced post processing with MV-Plane and Insight

AVAILABLE MOVEMENTS

X – travel: up to 50 m
Y – travel: up to 26 m
Z – travel: up to 3 m
Polarization: 360°
