Telecommunication Antennas

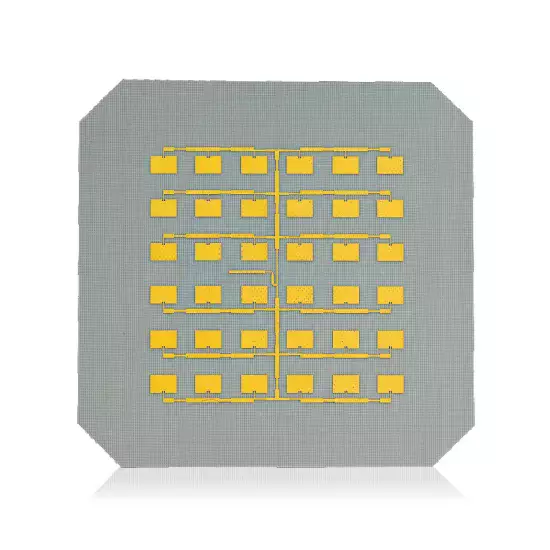

Planar Antennas for Integrated Applications

24025 MHz - 24225 MHz

Planar Antennas for Integrated Applications are a solution for general transmitting and receiving applications at 24 GHz, radar and radio link point-to-point.

参考文献:

PA2400-A -
PA2400-B -
PA2400-C -
PA2400CP-A

お問い合わせ
データシート

Planar Antennas for Integrated Applications

TECHNICAL PERFORMANCE

High gain
Power handling up to 20 W
Linear or circular polarization

DESIGN

Optimized WR42 microstrip transition allows the connection of electronic parts with a standard flange
Can be easily integrated in existing systems

DELIVERED DOCUMENTS

Conformity certificate (measured VSWR)

RELATED STANDARD

IEC 60068

EQUIPMENT

Ground plane
Mounting flange
