EMC-10 Anechoic Chamber

30 MHz - 18000 MHz

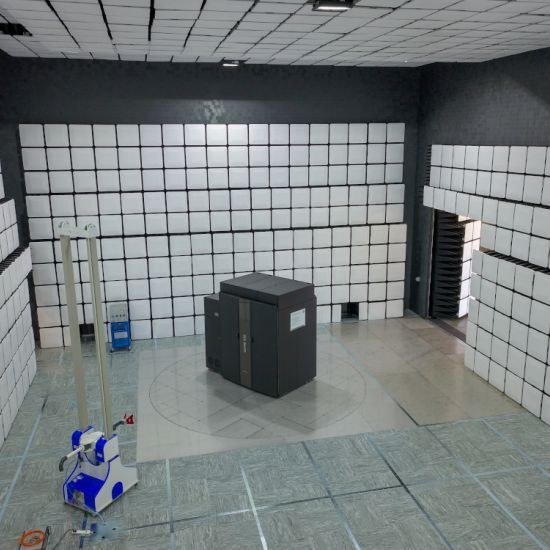

The Gold standard for EMC Anechoic Chambers, this 10 meter test range ensures EMC compliance testing Emission and Immunity testing and is compliant to ANSI C63.4/CISPR-16-1-4 with a Test Volume diameter of 4 meters or greater. The most versatile and accurate of EMC test chambers. Ferrite tiles and hybrid pyramidal absorbers allow for high accuracy and performance while meeting compact space requirements.

参考文献:

EMC-10

APPLICATIONS

EMC compliance testing in accordance with Emissions & immunity standards for all electrical & electronic products

KEY FEATURES

EMC Chamber Dimensions (Internal shield)21 m x 12 m x 8.5 m
EMC compliance testing Emission Performance
- CISPR 16-1-4/ANSI C63.4
- NSA 30 MHz -1 GHz +/-4 dB or better @3m/ Test Volume 2.0x2.0m (DxH)
- NSA 30 MHz -1 GHz +/-4 dB or better @10m/ Test Volume 4.0x2.0m* (DxH)
EMC compliance testing Emission Performance
- CISPR 16-1-4, sVSWR
- 1 GHz - 18 GHz @3m sVSWR < 6dB 2.0x2.0m (DxH)
EMC compliance testing Immunity Performance
- IEC 61000-4-3
- 80MHz -18GHz UFA 1.5x1.5m @3m ) 0 +6dB
Extended performance options – meeting MIL STD 461F and other specifications (40GHz
Independently certified 100 dB @ 18 GHz shielding performance (EN50147-1)
EMC absorbers HyPyr-LossTM Ferrite and Hybrid absorbers for 26 MHz - 40 GHz measurements
Optimized computer modeling to enable cost effective EMC absorbers layouts
This EMC Chamber is a Bespoke and modular design enabling unlimited performance options and facilitating upgrades or relocations
This EMC Chamber is available as part of a complete turnkey package for EMC measurements

*Options for smaller / larger Test Volumes also available
