Rotary Positioners

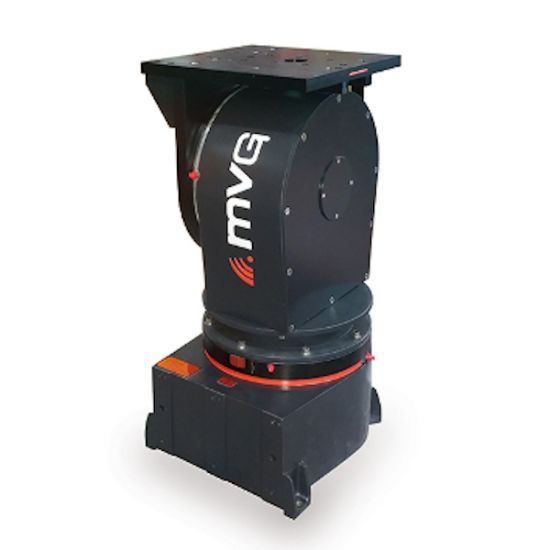

EL/AZ Positioners: Light Duty

MVG light duty EL/AZ positioners provide accurate rotation, velocity, and direction with platform sizes up to 12.6 x 12.6 in (320 x 320 mm). Their rugged yet straight-forward construction ensures maximum reliability and trouble-free operation.

参考文献:

AL-4269-1 -
AL-4270-1

APPLICATIONS

General Purpose Positioning Subsystems
Far-Field & Near-Field Antenna Measurements
Indoor & Outdoor Use

KEY FEATURES

Vertical Loads Ranging from 100 to 200 lbs (45 to 91 kg)
Platform Sizes Ranging from 9.8 x 7.9 in to 12.6 x 12.6 in (250 x 200 mm to 320 x 320 mm)
Excellent Angular Position Accuracy
Low Backlash Design
Precision Bearings
Closed Loop Servo Control
Industry-Standard Wiring
Tachometers for Optimum Speed Regulation & Control
Wide Operating Temperature Range: - 4° F to 140° F (- 20° C to 60° C)
Fully Enclosed Design of Drive Gear Train & Data Take-Off
Wide Variety of Available Options

INDUSTRIES

Solutions for Academic & Research Institutes
Solutions for Aerospace & Defense
