Rotary Positioners

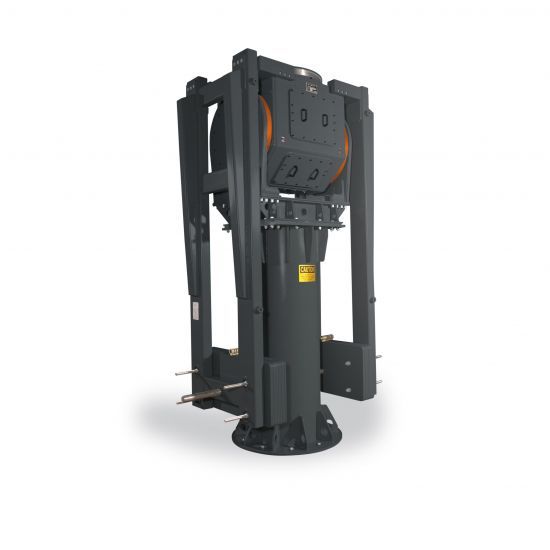

Performance Series - AZ/EL Positioners: Heavy Duty

MVG Performance Series heavy duty AZ/EL positioners represent the latest generation of multi-axis rotary positioning subsystems with turntable diameters up to 48.0 in (1,219 mm). They offer enhanced capabilities and improved performance relative to size and incorporate new engineering advances.

参考文献:

AL-4385-1 -
AL-4386-1 -
AL-4387-1 -
AL-4388-1 -
AL-4389-1

Performance Series - AZ/EL Positioners: Heavy Duty

APPLICATIONS

General Purpose Positioning Subsystems
Far-Field & Near-Field Antenna Measurements
Indoor & Outdoor Use

KEY FEATURES

Vertical Loads Ranging from 18,000 to 40,000 lbs (8,165 to 18,140 kg)
Turntable Diameter Ranging from 30.0 to 48.0 in (762 to 1,219 mm)
Excellent Angular Position Accuracy
Low Backlash Design
Precision Bearings
Closed Loop Servo Control
Industry-Standard Wiring
Tachometers for Optimum Speed Regulation & Control
Wide Operating Temperature Range: - 4° F to 140° F (- 20° C to 60° C)
Fully Enclosed Design of Drive Gear Train & Data Take-Off
Wide Variety of Available Options

INDUSTRIES

Solutions for Academic & Research Institutes
Solutions for Aerospace & Defense
