Multi-probe Systems

AeroLab

9300 MHz - 9500 MHz

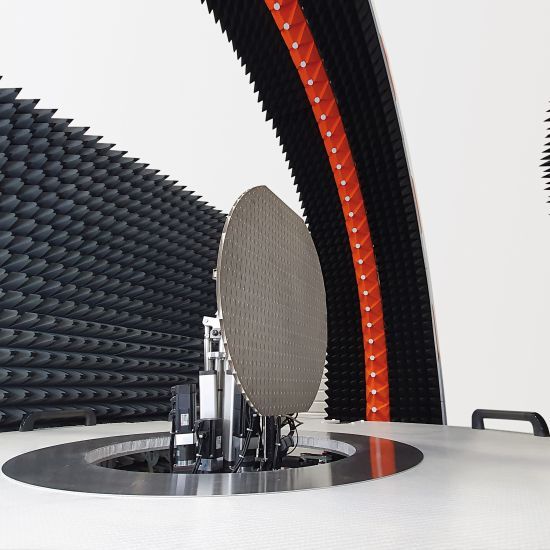

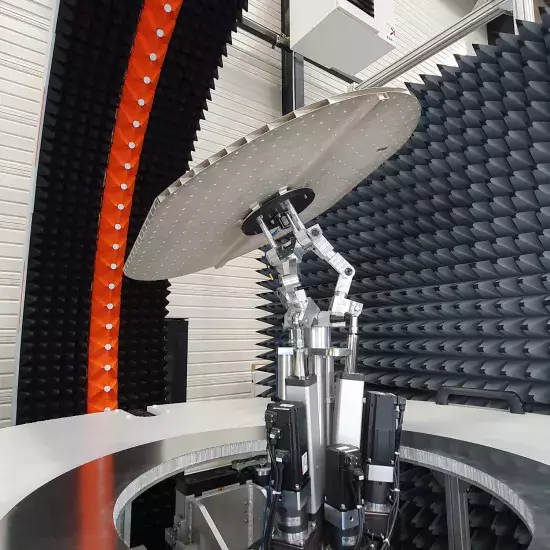

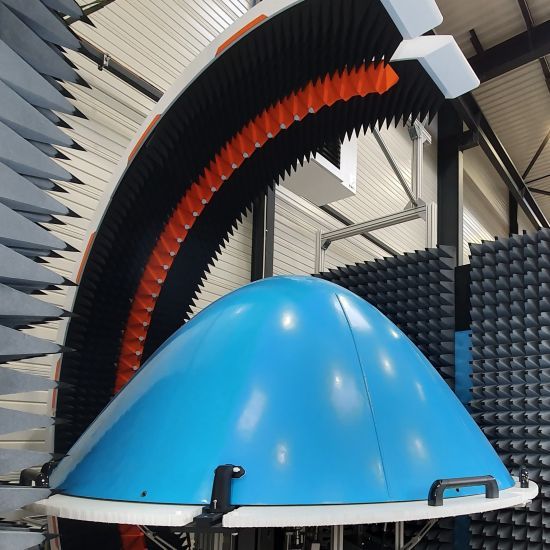

The AeroLab is a multi-probe Near-Field measurement system particularly designed to measure radomes of commercial aircrafts. Measurement results from AeroLab show transmission efficiency, sidelobe levels, and beamwidth with respect to the requirements of the revised version (2) of the RTCA-DO-213A quality standard.

References:

  • AeroLab
AeroLab
AeroLab
AeroLab
AeroLab
AeroLab
AeroLab

MEASUREMENT CAPABILITIES

  • Transmission efficiency
  • Sidelobes levels
  • Beamwidth

FREQUENCY RANGE

  • from 9.3 GHz to 9.5 GHz

STANDARDS

  • Compliant with RTCA DO-213A

TYPICAL RADOME SIZE

  • 2.6 m Ø x 1.1 m deep

DIAMETER OF ARCH

  • 3.6 m

Related products

See Compact Antenna Test Range

Compact Antenna Test Range

700 MHz - 110000 MHz

See StarBot 4300

StarBot 4300

500 MHz - 10000 MHz

See EME Guard XS Radar

EME Guard XS Radar

1 MHz - 40000 MHz

See Dual-Ridge Horns

Dual-Ridge Horns

100 MHz - 50000 MHz

View all

Related resources

See Introducing AeroLab – Performing fast and accurate aircraft nose radome testing

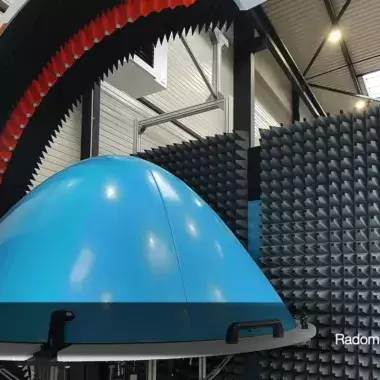

Introducing AeroLab – Performing fast and accurate aircraft nose radome testing
