Reference Antennas

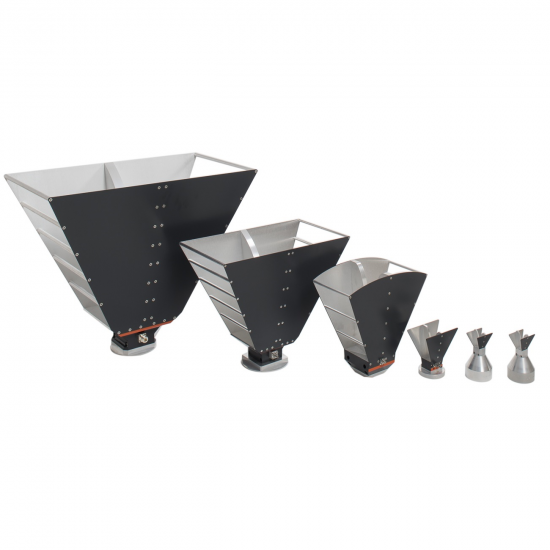

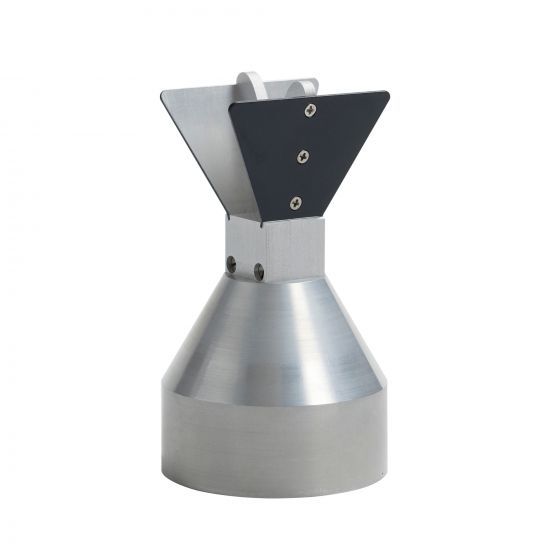

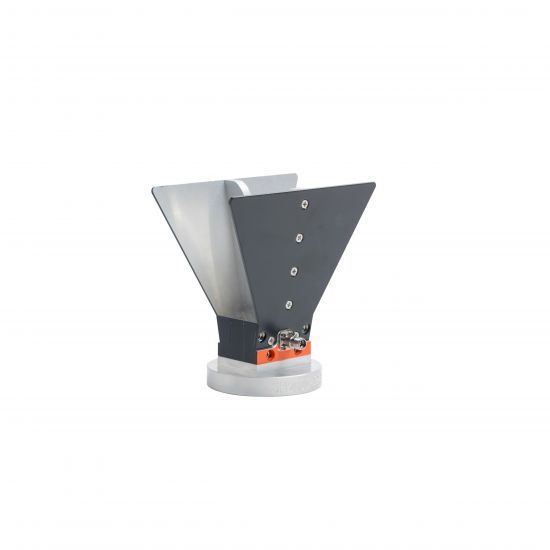

Dual-Ridge Horns

100 MHz - 50000 MHz

Dual-Ridge Horns are a solution for gain reference, far-field test ranges and reflector feeds for high gain applications.

References:

  • SH100 -
  • SH200 -
  • SH400 -
  • SH600 -
  • SH800 -
  • SH1000 -
  • SH2000 -
  • SH4000 -
  • SH5000 -
  • R750 -
  • R430 -
  • R175
Dual-Ridge Horns
Dual-Ridge Horns
Dual-Ridge Horns
Dual-Ridge Horns
Dual-Ridge Horns
Dual-Ridge Horns
Dual-Ridge Horns
Dual-Ridge Horns

TECHNICAL PERFORMANCE

  • Stable gain with frequency
  • Low return loss / VSWR
  • Wide bandwidth

DESIGN

  • Unique design preventing the excitation of unwanted higher order modes in the aperture
  • Well-defined smooth radiation pattern throughout the operational bandwidth
  • Lightweight for easy handling

SURFACE TREATMENT

  • Surtec 650 according to MIL-C 5541E class 3
  • Polyurethane paint

REPEATABILITY

  • Stiff and robust mechanical design
  • Standard MVG circular interface for precision centering
  • Precision pin for accurate polarization alignment
  • Precision machined
  • High reliability coaxial connector

DELIVERED DOCUMENTS

  • Typical performance data (TYMEDA™)
  • Measured return loss data

EQUIPMENT

  • Mounting flange

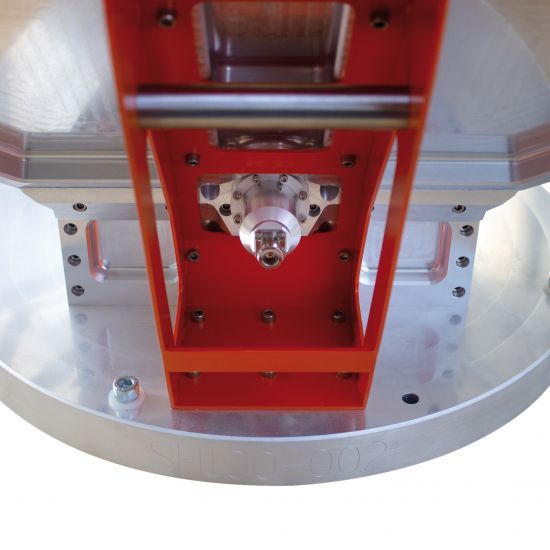

  • Integrated coaxial transition with high precision connector
  • Protective radome for outdoor installation (Optional)
