Multi-probe Systems

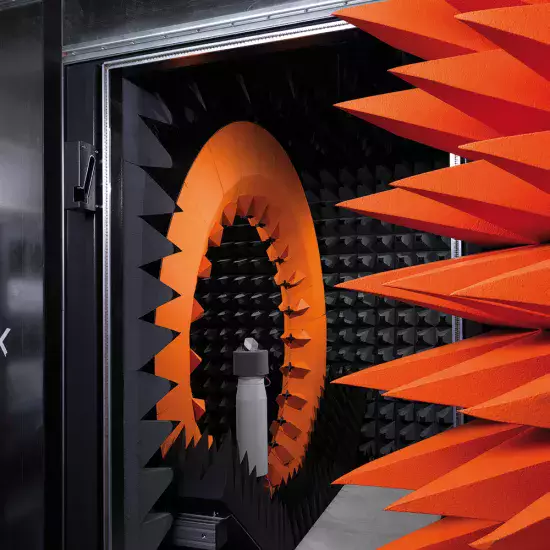

SG 24

400 MHz - 10000 MHz

The SG 24 is ideal for the OTA testing of mobile device conformance, particularly for LTE, 5G (<10 GHz) and WiFi protocols. It offers an ultra-fast measurement speed and high dynamic range in passive antenna measurement mode.

References:

  • SG 24-C -
  • SG 24-S -
  • SG 24-L
SG 24
SG 24
SG 24
SG 24
SG 24
SG 24
SG 24
SG 24

MEASUREMENT CAPABILITIES

  • Gain
  • Directivity
  • Beamwidth
  • Cross-polar discrimination
  • Sidelobe levels
  • Front to back ratio (SG 24-L)
  • 1D, 2D, 3D radiation patterns
  • Radiation pattern in any polarization (linear or circular)
  • Antenna efficiency
  • TRP, TIS, EIRP and EIS

FREQUENCY RANGE

  • SG 24-C: 0.6 to 6 GHz
  • SG 24 -S: 0.4 to 6 GHz
  • SG 24 -L: 0.4 to 6 GHz
  • Option to extend the frequency band up to 10 GHz

TECHNOLOGY

  • Near-field / Spherical
  • Far-field

UNLIMITED SAMPLING

  • Elevation tilt of DUT
