Multi-probe Systems

SG 64

70 MHz - 18000 MHz

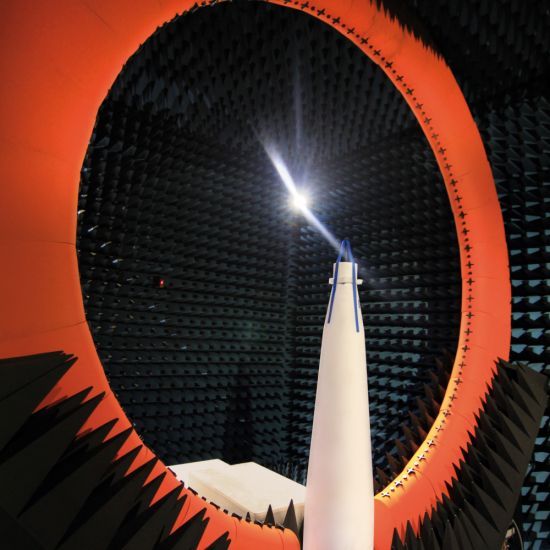

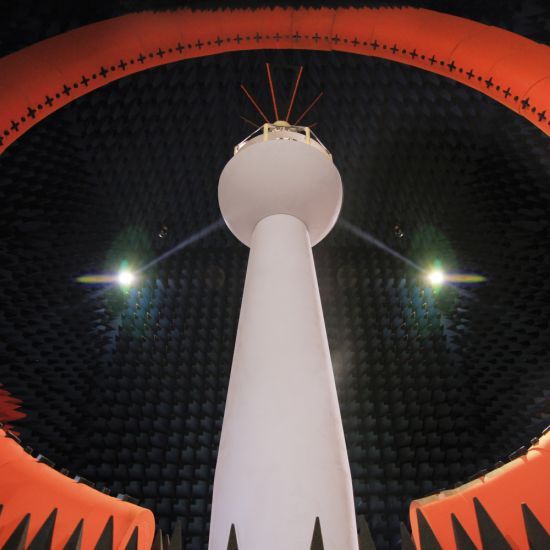

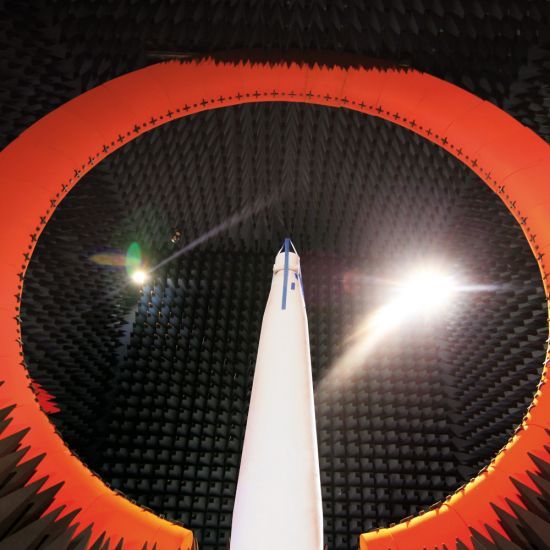

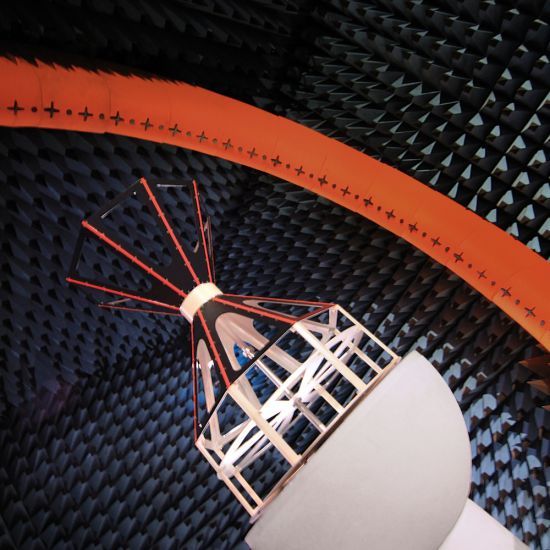

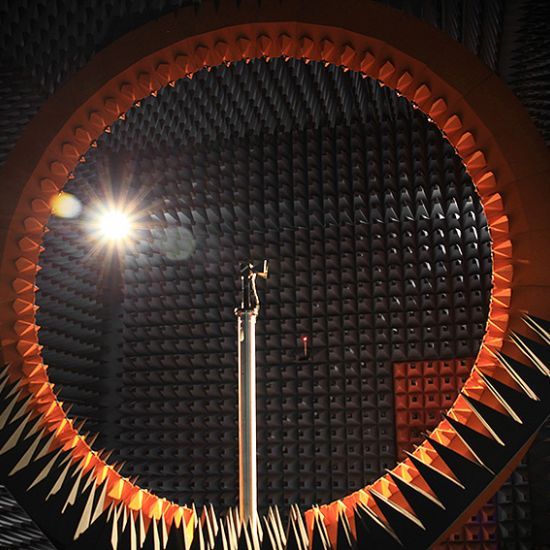

The most accurate solution for testing antennas and wireless devices: SG 64 has been developed to measure stand alone antennas or antennas integrated in subsystems. It is also ideal for CTIA certiļ¬able measurement facilities.

References:

  • SG 64-C -
  • SG 64-S -
  • SG 64-L -
  • SG 64-18 -
  • SG 64-LF
SG 64
SG 64
SG 64
SG 64
SG 64
SG 64
SG 64
SG 64
SG 64
SG 64

MEASUREMENT CAPABILITIES

  • Gain
  • Directivity
  • Beamwidth
  • Cross-polar discrimination
  • Sidelobe levels
  • Front to back ratio
  • 1D, 2D, 3D radiation patterns
  • Radiation pattern in any polarization (linear or circular)
  • Antenna efficiency
  • TRP, TIS, EIRP and EIS

FREQUENCY RANGE

  • SG 64-C: 0.4 to 6 GHz
  • SG 64-S: 0.4 to 6 GHz
  • SG 64-L: 0.4 to 6 GHz
  • SG 64-18: 0.4 to 18 GHz
  • SG 64-LF: 70 MHz to 6 GHz

MAX. SIZE OF DUT

  • 2.73 m for SG 64-L

MAX.WEIGHT OF DUT

  • 200 Kg

TYPICAL DYNAMIC RANGE

  • 70 dB

UNLIMITED SAMPLING

  • Elevation tilt of the DUT
