Multi-probe Systems

SG 3000

70 MHz - 18000 MHz

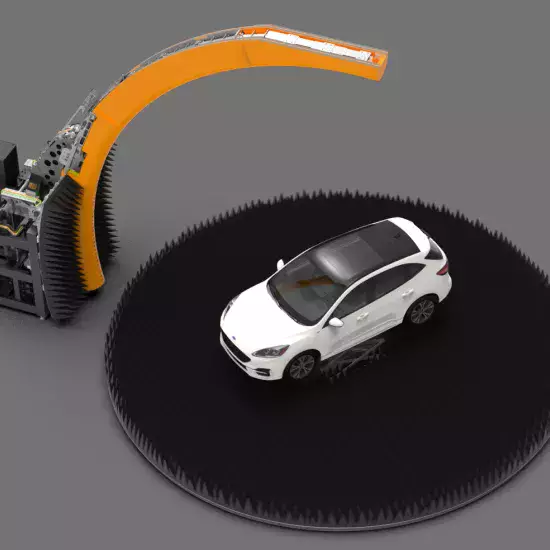

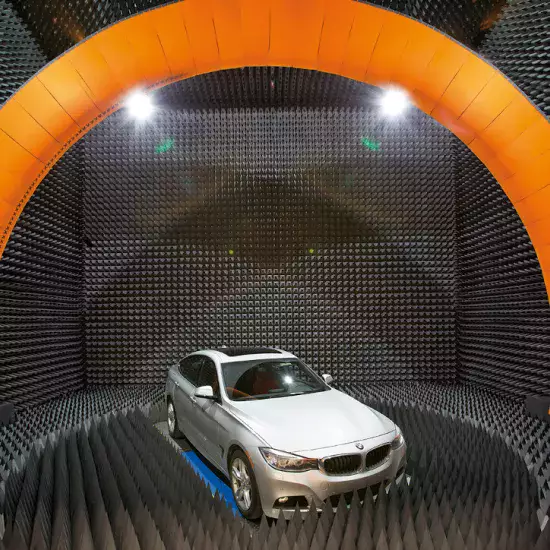

SG 3000 systems are dedicated to full-scale vehicle antenna measurements and OTA testing.The system configuration can be adapted to meet specific needs and to fit your installation:different arch sizes can be designed, and its structure can be fixed (F) or mobile (M) allowing it to be either permanently installed or moved into an existing anechoic chamber. The rotation of the DUT is controlled by a high precision positioning system enabling discrete and/or continuous on-the-fly measurements.

References:

  • SG 3000F -
  • SG 3000M
SG 3000
SG 3000
SG 3000
SG 3000
SG 3000
SG 3000

MEASUREMENT CAPABILITIES

  • Gain
  • Directivity
  • Beamwidth
  • Cross polar discrimination
  • Sidelobe levels
  • 1D, 2D and 3D radiation patterns
  • Radiation pattern in any polarization (linear or circular)
  • Antenna efficiency
  • Antenna diversity
  • Key fob testing for remote keyless entries

MAX. SIZE OF DUT

  • 2.4m x 6 m (Wx)

MAX. WEIGHT OF DUT

  • 3 500 kg

TYPICAL DYNAMIC RANGE

  • 70 dB
