Multi-probe Systems

StarLab 50 GHz

650 MHz - 50000 MHz

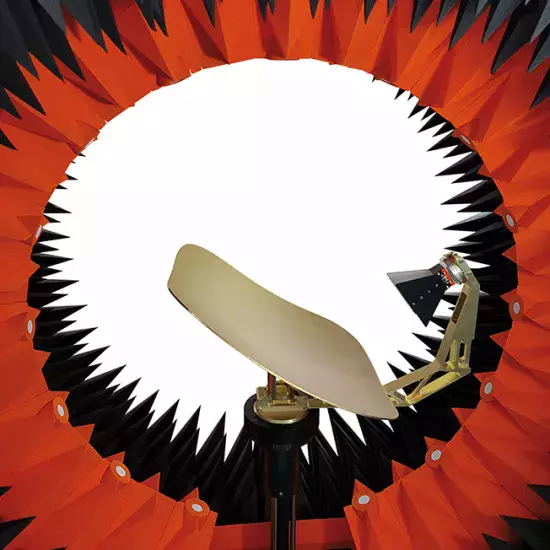

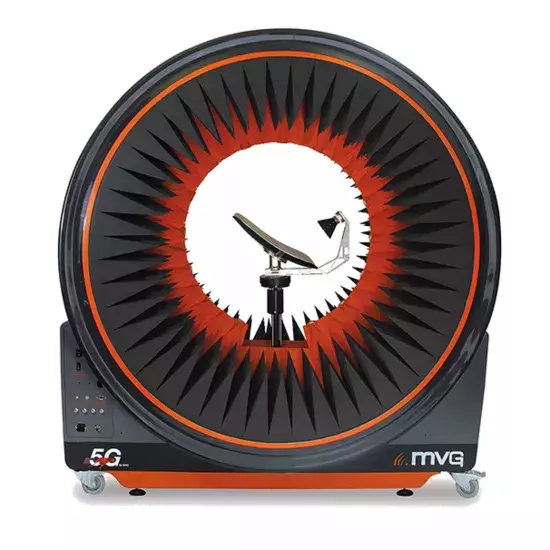

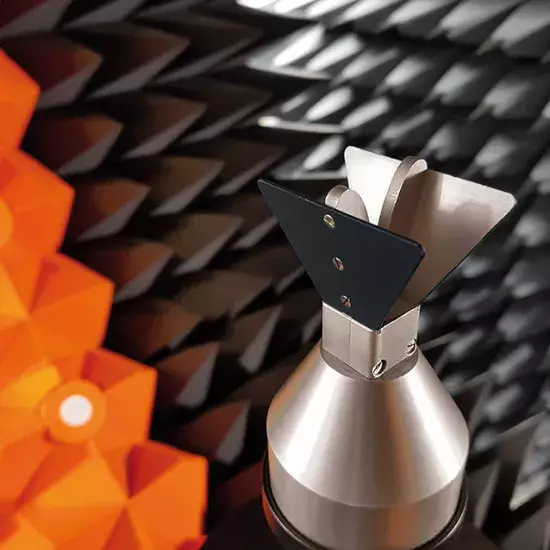

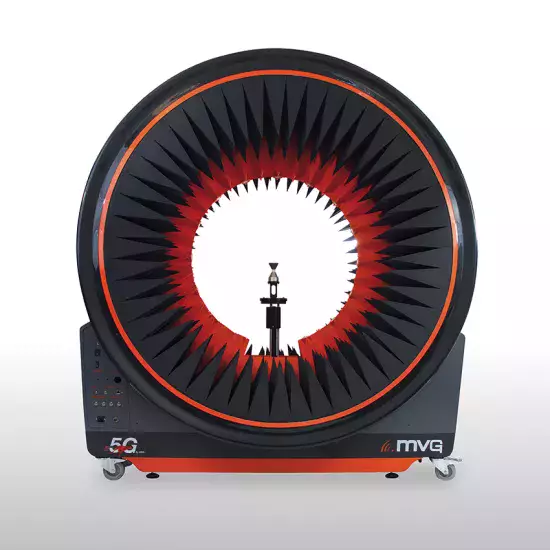

Built for efficiency, the StarLab 50 GHz is an all-in-one, turnkey antenna measurement system. Flexibility at the design stage allows for a selection of different types of test configurations based on a wide range of frequencies to be measured, from 650 MHz to 50 GHz, and 2 types of geometries - spherical and cylindrical near-field measurements. Capabilities of StarLab 50 GHz also provide flexibility in types of antennas to be tested, as stand-alone antennas, elements in an array, or integrated in a system, as well as antennas from low to high directivity.

The patented multi-probe electronic scanning and unlimited sampling technology built into the arch of the StarLab 50 GHz reduce mechanical movement of the DUT for unparalleled speed and accuracy of measurements.

Last but not least, its compact and portable design facilitates flexibility in any test lab or production site location and space. Altogether, this advanced technology brings crucial speed and accuracy to the test and validation process of your future 5G device.

References:

  • SL-5015-1807-0607 -
  • SL-5015 -
  • SL-5029 -
  • SL-5015-1814 -
  • SL-5015-0614 -
  • SL-5015-1014

MEASUREMENT CAPABILITIES

  • Gain
  • Directivity
  • Beamwidth
  • Cross polar discrimination
  • Sidelobe levels
  • 3D radiation pattern
  • Radiation pattern in any polarization (linear or circular)
  • Antenna efficiency
  • TRP, TIS, EIRP and EIS

MAX. WEIGHT OF DUT (CENTERED LOAD)

  • 10 kg with styrofoam mast
  • 50 kg with metallic mast

TECHNOLOGY

  • Near-field: Spherical / Cylindrical

FREQUENCY BANDS

  • 650 MHz - 50 GHz
  • 10 GHz - 50 GHz
  • 18 GHz - 50 GHz

MAX. SIZE OF DUT

  • 45 cm diameter - for spherical set-up
  • 270 cm L x 45 cm W - for cylindrical set-up

TYPICAL DYNAMIC RANGE

  • 50 dB

UNLIMITED SAMPLING

  • Arch rotation
