Reference Antennas

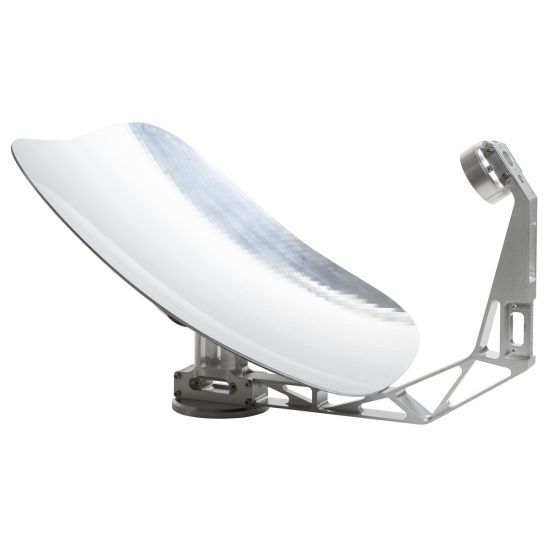

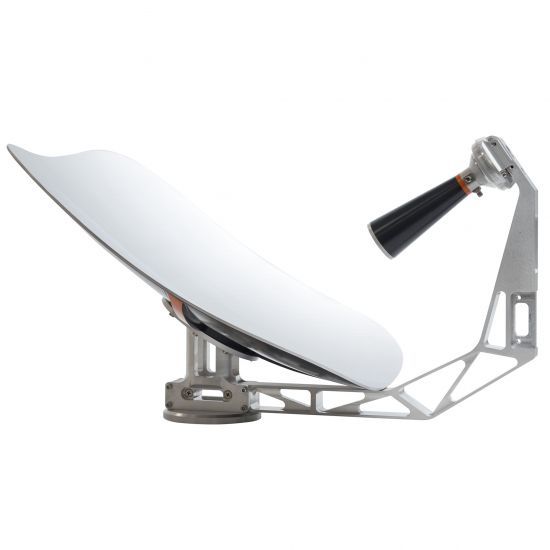

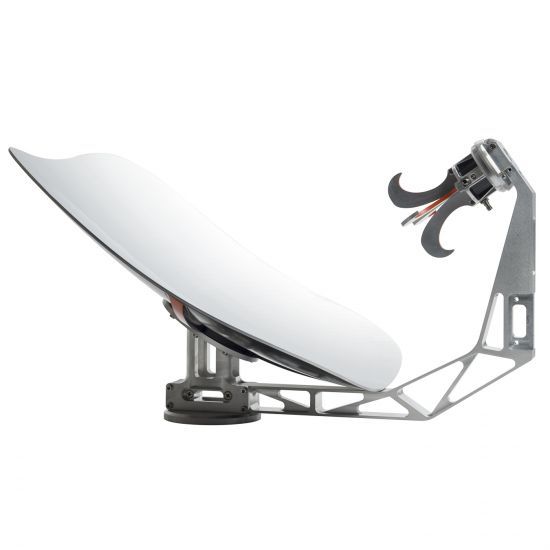

High Precision Offset Parabolic Reflector

2000 MHz - 50000 MHz

High Precision Offset Parabolic Reflector is a solution for high-gain reference antenna and far-field antenna measurements.

References:

  • SR40-A -
  • SH2000 -
  • SH4000 -
  • SH5000 -
  • QH2000 -
  • QH4000 -
  • QR18000

TECHNICAL PERFORMANCE

  • Smooth gain with frequency
  • Linear polarized with high polarization purity
  • Low return loss / VSWR
  • Wide bandwidth

DESIGN

  • Super elliptical rim
  • Lightweight for easy handling

SURFACE TREATMENT

  • Surtec 650 according to MIL-C 5541E class 3

REPEATABILITY

  • Stiff and robust mechanical design
  • Standard MVG circular interface for precision centering
  • Precision pin for accurate polarization alignment
  • Precision machined

DELIVERED DOCUMENTS

  • Typical performance data (TYMEDA™)
  • Measured return loss data

EQUIPMENT

  • Mounting flange
  • Feed adapter flange
