Field Probe Positioner (FPP-16)

The Field Probe Positioner (FPP-16) is designed for remote-controlled, X-Y positioning in defined vertical areas. The system allows for automatic measurements of the field uniformity as per IEC 61000-4-3;. It automates the positioning of the field probe over the 1.5 m x 1.5 m, 16-point grid, for both horizontal and vertical polarizations, to greatly reduce the time and hassle of the field uniformity measurements.

Reference:

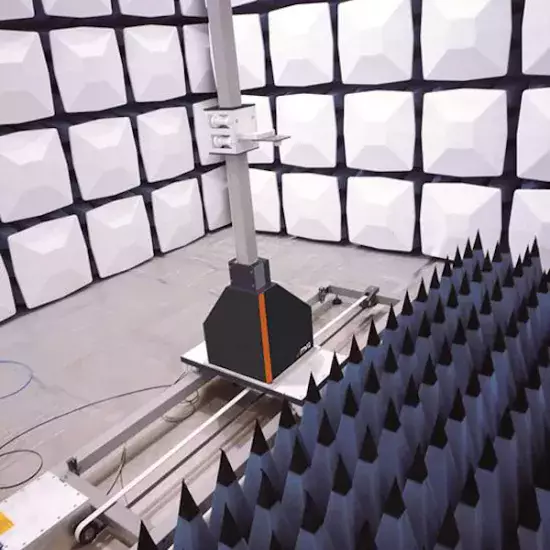

FPP-16 positioner
Key features
  • Made out of plastics PVC and reinforced fibreglass
  • Toothed belts out of kevlar reinforced (non methalic)
  • Remote control via IEEE interface
  • Control cable is in fibre optic line
  • Two toothed belts as antenna support drive
  • Brushless DC motors 200 W
Specifications
  • High adjustment 0.8- 2.3 M
  • Overall height of 2.3 m
  • Load capability of 3 kg
  • Temperature range of +10°C...+35°C
