EMC Test Chambers

EMC-3C Compact Chamber

30 MHz - 18000 MHz

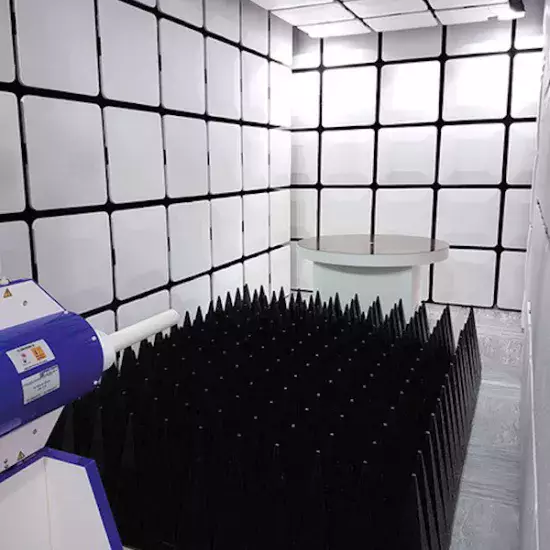

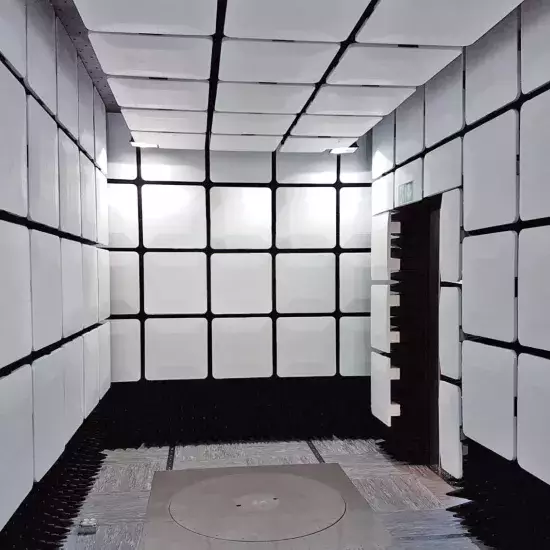

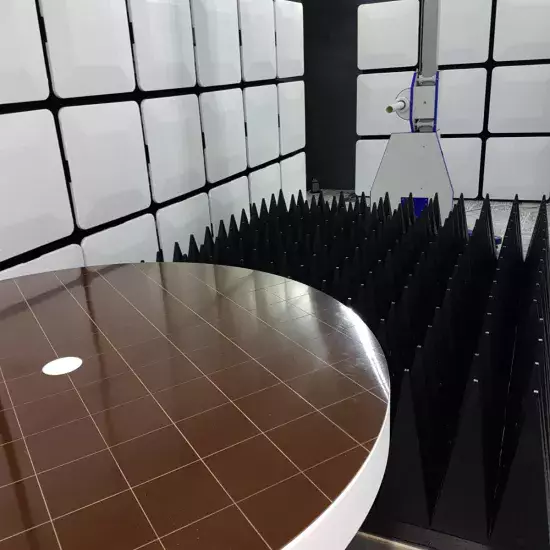

This compact EMC Chamber  with a 3 meter test range will settle into test areas of limited space while continuing to produce exceptional performance for EMC measurement. Emission test volumes of up to 1.5m are accommodated with very repeatable results. Suitable for EMC pre-compliance emissions and EMC compliance immunity testing.

References:

  • EMC-3C

APPLICATIONS

  • EMC compliance testing in accordance with Emissions & Immunity standards for all electrical & electronic products

KEY FEATURES

  • EMC Chamber Dimensions (Internal shield) 7.0m x 3.0m x 3.0m
  • EMC pre-compliance testing Emission Performance
    • CISPR 16-1-4/ANSI C63.4 NSA
    • NSA 30 MHz -1 GHz +/-4 dB or better @3m for 80% of frequency range, Test Volume 1.5x1.0m (DxH)
  • EMC pre-compliance testing Emission Performance
    • CISPR 16-1-4, sVSWR
    • 1 GHz - 18 GHz @3m  sVSWR 0  < 6dB 1.5x1.0m (DxH)
  • EMC compliance testing Immunity Performance
    • IEC 61000-4-3 80MHz -18GHz UFA 1.5x1.5m @3m, 0 +6dB
  • Independently certified 100 dB @ 18 GHz shielding performance (EN50147-1)

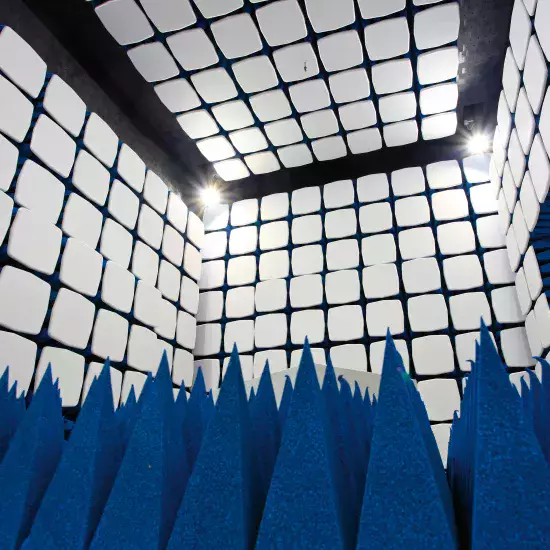

  • EMC absorbers HyPyr-LossTM Ferrite and Hybrid absorbers
  • Optimised computer modeling to enable cost effective absorber layouts
  • This EMC Chamber is a Bespoke and modular design enabling unlimited performance options and facilitating upgrades or relocations
  • This EMC Chamber is available as part of a complete turnkey package for EMC measurements
