Rotary Positioners

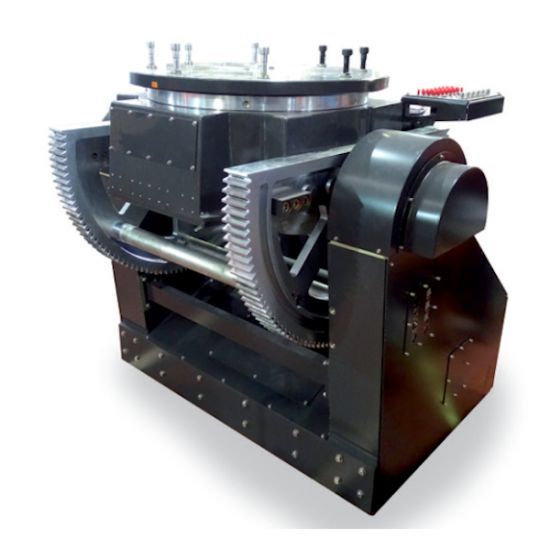

AZ/EL Positioners: Heavy Duty

MVG Series heavy duty AZ/EL positioners provide accurate rotation, velocity, and direction and offer turntable diameters up to 74 in (1880 mm). Rugged yet simple construction ensures maximum reliability and trouble-free operation.

References:

AL-4316-1 -
AL-4306-1 -
AL-4307-1 -
AL-4309-1 -
AL-4310-1 -
AL-4317-1

APPLICATIONS

General Purpose Positioning Subsystems
Far-Field & Near-Field Antenna Measurements
Indoor & Outdoor Use

KEY FEATURES

Vertical Loads Ranging from 30,000 to 45,000 lbs (13,610 to 20,410 kg)
Turntable Diameters Ranging from 34.3 to 74.0 in (870 to 1,880 mm)
Excellent Angular Position Accuracy
Low Backlash Design
Precision Bearings
Closed Loop Servo Control
Industry-Standard Wiring
Tachometers for Optimum Speed Regulation & Control
Wide Operating Temperature Range: - 4° F to 140° F (- 20° C to 60° C)
Fully Enclosed Design of Drive Gear Train & Data Take-Off
Wide Variety of Available Options

INDUSTRIES

Solutions for Academic & Research Institutes
Solutions for Aerospace & Defense
