Rotary Positioners

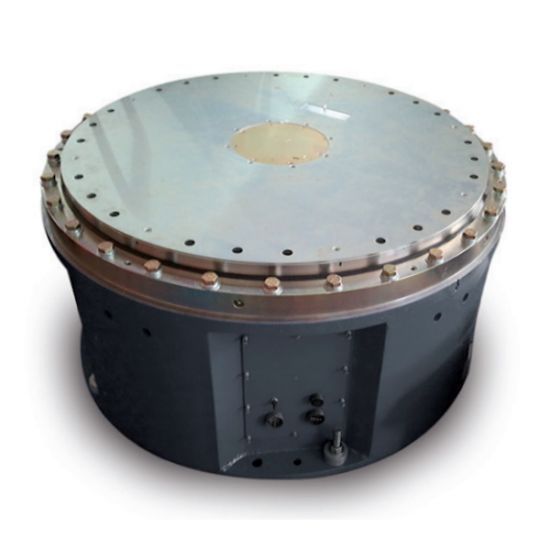

Azimuth Positioners: Heavy Duty

MVG heavy duty azimuth positioners provide accurate rotation, velocity, and direction, with turntable diameters up to 122 in. (3100 mm). Their rugged yet straight-forward construction ensures maximum reliability and trouble-free operation.

References:

  • AL-2760-1 -
  • AL-2761-1 -
  • AL-2763-1 -
  • AL-2860-1 -
  • AL-2861-1 -
  • AL-2960-1 -
  • AL-4750-1 -
  • AL-4760-1 -
  • AL-4860 -
  • AL-7760-1-TH -
  • AL-8860-1 -
  • AL-9960-1
Azimuth Positioners: Heavy Duty

APPLICATIONS

  • General Purpose Positioning Subsystems
  • Far-Field & Near-Field Antenna Measurements
  • Indoor & Outdoor Use

KEY FEATURES

  • Broad Selection – 14 Models
  • Vertical Loads Ranging from 50,000 to 550,000 lbs (22,680 to 250,000 kg)
  • Turntable Diameters Ranging from 47.2 to 122.0 in (1,200 to 3,100 mm)
  • Excellent Angular Position Accuracy
  • Low Backlash Design
  • Precision Bearings
  • Closed Loop Servo Control
  • Industry-Standard Wiring
  • Tachometers for Optimum Speed Regulation & Control
  • Wide Operating Temperature Range: - 4° F to 140° F (- 20° C to 60° C)
  • Fully Enclosed Design of Drive Gear Train & Data Take-Off
  • Wide Variety of Available Options

INDUSTRIES

  • Solutions for Academic & Research Institutes
  • Solutions for Aerospace & Defense
