Reference Antennas

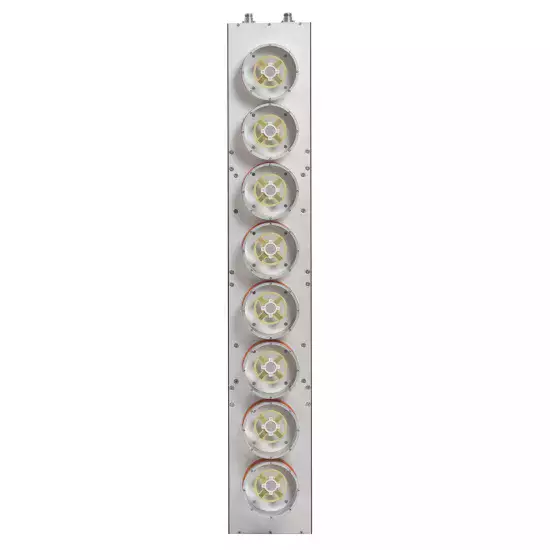

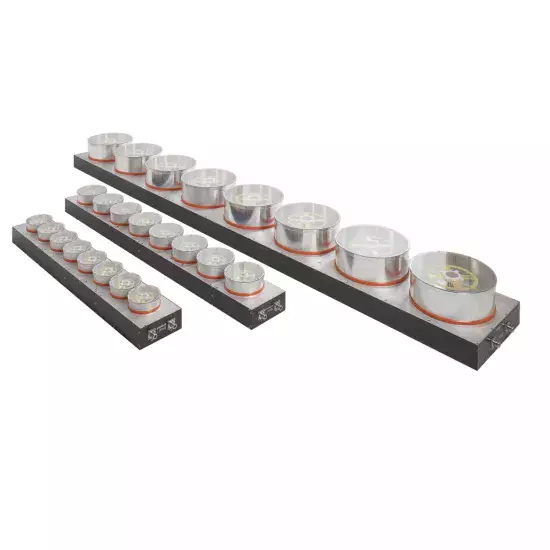

Linear Array Reference Antennas
824 MHz - 2690 MHz
Linear Array Reference Antennas are a solution for gain reference for base station antennas and cylindrical near-field systems.
Referencias:
- BTS892-A -
- BTS1940-A -

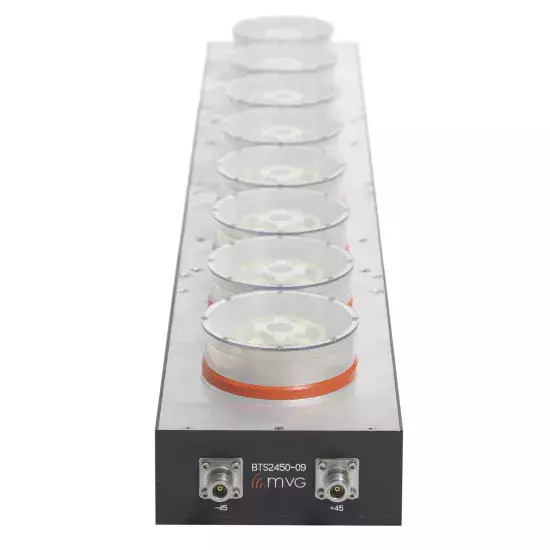

- BTS2450
TECHNICAL PERFORMANCE
- Dual slant +45°/-45° or H/V polarization
- Low cross polarization
DESIGN
- Lightweight for easy handling
- Reduced inter-element coupling
- Adjustable interface for easy mounting
SURFACE TREATMENT
- Surtec 650 according to MIL-C 5541E class 3
- Polyurethane paint
REPEATABILITY
- Stiff and robust mechanical design
- Precision machined
- High reliability coaxial connector
- Precision pole mounting brackets
DELIVERED DOCUMENTS
- Typical performance data (TYMEDA™)
- Measured return loss data and port-to-port coupling
EQUIPMENT
- Brackets for pole mounting
