EMC Test Chambers

CISPR25 Chamber

1 MHz - 18000 MHz

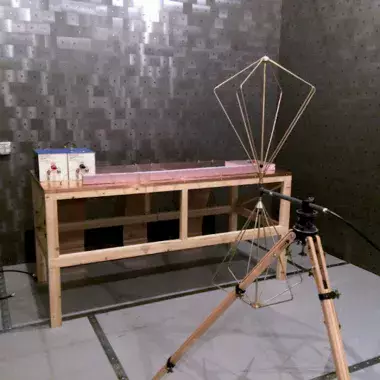

The CISPR25 emc chamber is designed for emc compliance benchtop testing of automotive components and wiring harnesses . The MVG CISPR25 emc chamber is designed for the emc measurements using the requisite 1 m test distance and for a “typical bench” configuration of 2.5 m x 1.0 m. The unique design requires less volumetric space than traditional absorbers and still provides the volume required to have the requisite distances between the EUT and the walls and the emc absorber and the walls & ceiling. The chamber is designed with anechoic treatment that meets the specified attenuation in the CISPR 25 standard, and it is designed to meet the Long Wire testing specified in Annex J. The polypropylene emc absorber does not undergo the typical age-related deterioration of the typical “foam” polyurethane absorbers. The UH-series, polypropylene emc absorber is also applicable to the radar pulse testing required in some automotive test standards.

参考文献:

  • CISPR25 -
  • CISPR25 EV
CISPR25 Chamber

APPLICATIONS

  • Automotive benchtop (components, wiring harnesses) testing at 1 m distance
  • Radiated emissions and immunity
  • High power radar pulse measurements

KEY FEATURES

  • Compact dimensions: 5.6 m x 5.1 m x 3.5 m (inside, shield-to-shield)
  • Designed for automotive bench-top testing at 1 m distances: applicable for CISPR25, ISO 11452-2, and other automotive standards (SAE, OEMs, etc)
  • Customized versions available
  • Meets CISPR25 attenuation specs and Annex J performance validation
  • Independently certified 100 dB @ 18 GHz shielding performance (ISO17025)
  • Independently certified 100 dB @ 18 GHz shielding performance (EN50147-1)
  • EMC absorbers HyPyr-LossTM Ferrite and Hybrid absorbers for 26 MHz - 40 GHz EMC measurements
  • Hybrid anechoic treatment – Provides better performance for low frequency testing
  • Optimized computer modeling to enable partial hybrid low cost version
  • EMC Chamber Bespoke and modular design enabling unlimited performance options and facilitating upgrades or relocations
  • EMC Chamber Available as part of a complete turnkey package for EMC measurements
  • Available as a turnkey solution with emc chamber and system
  • Wider 1.5 m door using unique MVG Door Designs
