Components

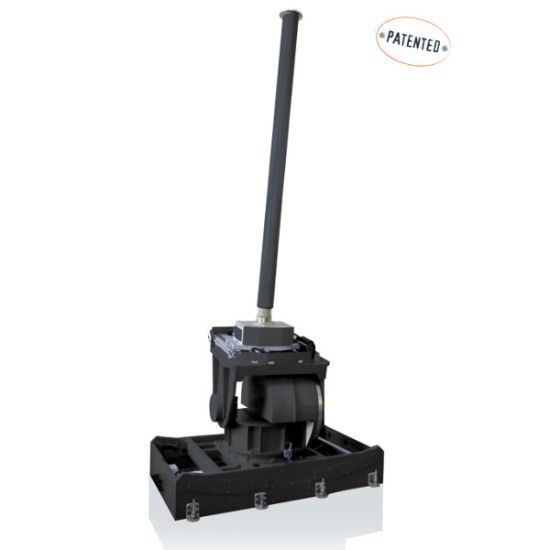

Advanced Positioners with Goniometers

The advanced positioners with goniometers represent a significant advancement in the high-accuracy angular alignment of components. Consisting of a goniometer, a rotational axis and a system base, they are designed to tilt the axes positioned above in small angles around the arch center. The carriage supports the positioner axes and the applied loads. They are offered as part of a complete positioning package.

References:

  • LOW-DUTY -
  • MEDIUM-DUTY -
  • HEAVY-DUTY
Advanced Positioners with Goniometers

MODELS

  • LOW-DUTY (UP TO 200 KG)
  • MEDIUM-DUTY (UP TO 300 KG)
  • HEAVY-DUTY (UP TO 1000 KG)

GONIOMETER OVERSAMPLING

  • Travel: ± 7.5° / ± 2.645° ; ± 1.4°
  • Max Vertical Load: From 0 to 1000 kg
  • Accuracy: ± 0.05°
  • Radius: 1946 mm - 4337.35 mm
  • Speed: 0.6°/sec (± 10%); 0.3°/sec (± 10%); 0.22°/sec (± 10%)

AZIMUTH(THETA)

  • Accuracy: ± 0.03°
  • Speed: 30°/sec ; 1.3 Rpm (± 10%); 12°/sec (± 10%)

MAX. SIZE OF DUT

  • On centered support column: as large as a standard laptop
  • On offset column for chip measurements: 5 cm x 5 cm (chipset)

DYNAMIC RANGE

  • > 60 dB at 50-110 GHz
