NPAC

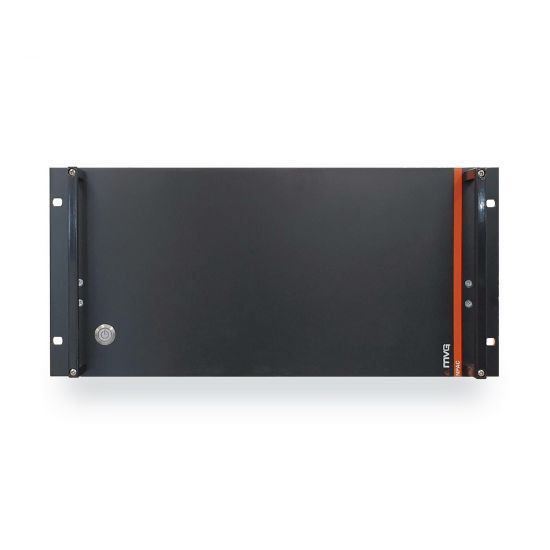

NPAC is MVG’s source and receiver allowing multiprobes systems to measure passive antenna much faster (factor 3 to 5) than most Vector Networks Analysers available on the market. Coupled with the Active CW Unit and the PRU (Phase Recovery Unit) the NPAC can now measure standalone devices transmitting a CW transmitted signals or a modulated signal (up to 50MHz bandwidth) and compute a Near-Field to Far-Field transform ensuring to visualize real Far-Field data.

Reference:
NPAC
Performances
  • Measurement speed (max): 50 Million measurements per second
  • Receiver integration time (1 average): 20 ns
  • IF bandwidth (1 average): >50 MHz
  • Channels: 2 (signal and reference)
  • IF frequency (nominal, others optional): From 1 to 80 MHz
  • 0.1 dB Compression (37.5 MHz IF level): 8 dBm
  • Sensitivity (37.5 MHz IF level): -110 dBm at 1 ms int. time
  • Dynamic range: > 115 dB at 1 ms int. time
