EMC-3 Anechoic Chamber

30 MHz - 18000 MHz

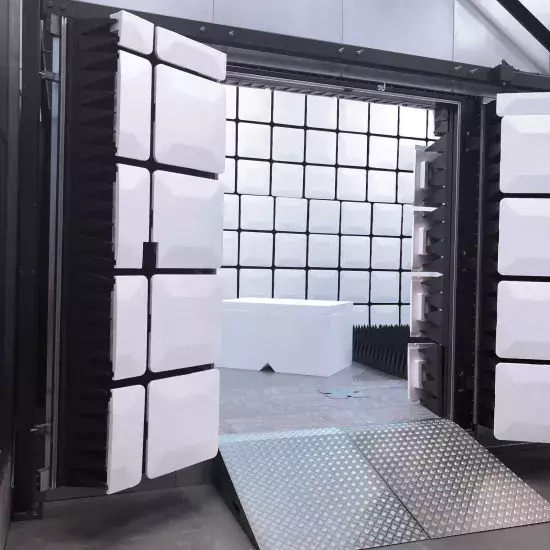

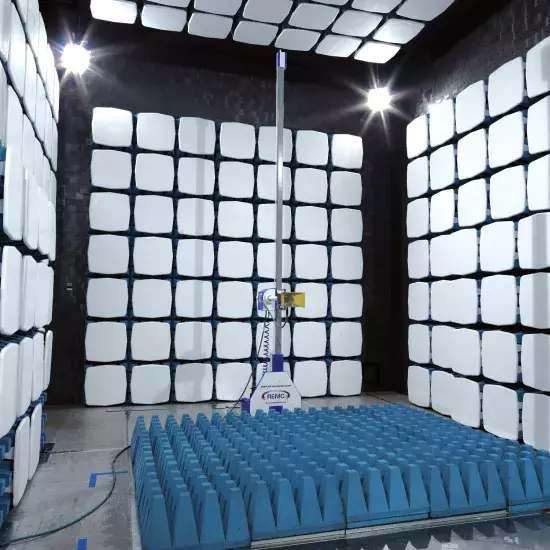

A Semi Anechoic EMC Chamber with 3-meter test range ensuring EMC compliance for Emission and Immunity testing. Ferrite and hybrid pyramidal EMC absorbers are combined in a unique pattern within a SmartShield high performance chamber. Operating at a 3m test distance, this chamber is compliant to ANSI C63.4/CISPR-16-1-4 with a Test Volume diameter of 1 to 2 meters.

References:

EMC-3

APPLICATIONS

EMC compliance testing in accordance with Emissions & Immunity standards for all electrical & electronic products

KEY FEATURES

EMC Chamber Dimensions (Internal shield) 8.9 m x 5.6 m x 5.8 m
EMC compliance testing Emission Performance
- CISPR 16-1-4/ANSI C63.4
- NSA 30 MHz -1 GHz +/-4 dB or better @3m
- Test Volume 1.5x2.0m (DxH)
EMC compliance testing Emission Performance
- CISPR 16-1-4,
- sVSWR 1 GHz - 18 GHz @3m sVSWR < 6dB 1.5x2.0m(DxH)
EMC compliance testing Immunity Performance
- IEC 61000-4-3 80MHz -18GHz UFA 1.5x1.5m @3m 0 +6dB
Extended performance options – meeting MIL STD 461F and other specifications (40GHz)
Independently certified 100 dB @ 18 GHz shielding performance (EN50147-1)
EMC absorbers HyPyr-LossTM Ferrite and Hybrid absorbers
Optimized computer modeling to enable partial hybrid low cost version
This EMC Chamber is a Bespoke and modular design enabling unlimited performance options and facilitating upgrades or relocations
This EMC Chamber is available as part of a complete turnkey package for EMC measurements
