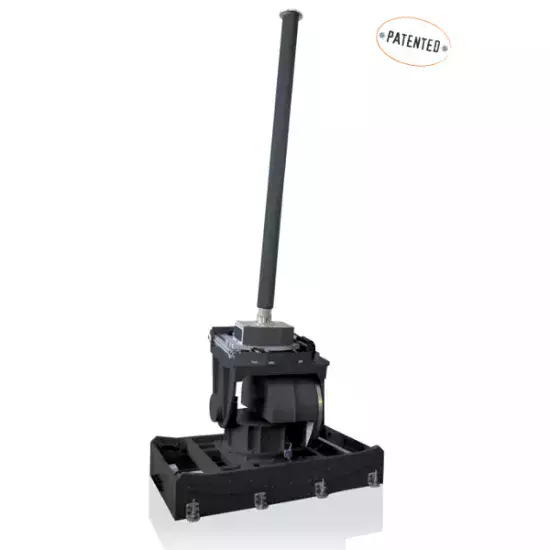

Advanced Positioners with Goniometers

The advanced positioners with goniometers represent a significant advancement in the high-accuracy angular alignment of components. Consisting of a goniometer, a rotational axis and a system base, they are designed to tilt the axes positioned above in small angles around the arch center. The carriage supports the positioner axes and the applied loads. They are offered as part of a complete positioning package.

See the references

Advanced Positioners with Goniometers

MODELS

LOW-DUTY (UP TO 200 KG)
MEDIUM-DUTY (UP TO 300 KG)
HEAVY-DUTY (UP TO 1000 KG)

GONIOMETER OVERSAMPLING

Travel: ± 7.5° / ± 2.645° ; ± 1.4°
Max Vertical Load: From 0 to 1000 kg
Accuracy: ± 0.05°
Radius: 1946 mm - 4337.35 mm
Speed: 0.6°/sec (± 10%); 0.3°/sec (± 10%); 0.22°/sec (± 10%)

AZIMUTH(THETA)

Accuracy: ± 0.03°
Speed: 30°/sec ; 1.3 Rpm (± 10%); 12°/sec (± 10%)

MAX. SIZE OF DUT

On centered support column: as large as a standard laptop
On offset column for chip measurements: 5 cm x 5 cm (chipset)

DYNAMIC RANGE

> 60 dB at 50-110 GHz

References

LOW-DUTY

(UP TO 200 KG)

MEDIUM-DUTY

(UP TO 300 KG)

HEAVY-DUTY

(UP TO 1000 KG)
